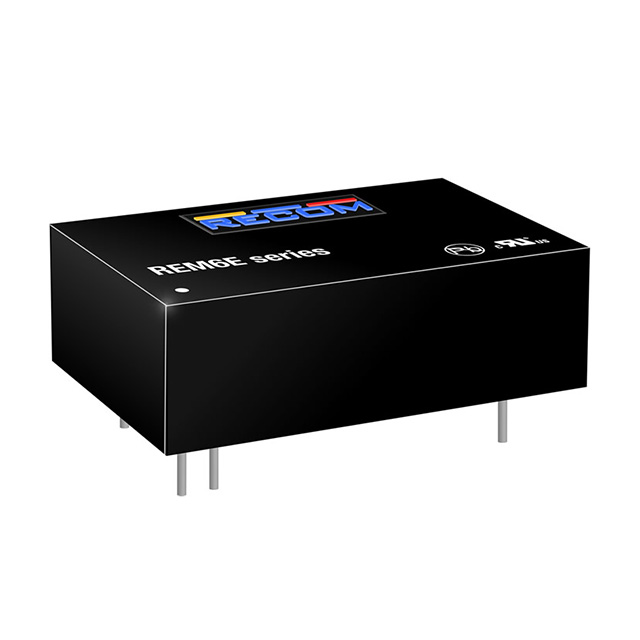

REM6E-2412D/R8/A

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, 2:1, 6 W, 2 OUTPUT, 12 V, 250 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

REM6E-2412D/R8/A

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, 2:1, 6 W, 2 OUTPUT, 12 V, 250 MA

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REM6E-2412D/R8/A

Applications	Medical
Approval Agency	CB, cURus
Current - Output (Max)	250 mA
Current - Output (Max)	250 mA
Efficiency	83 %
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 7 Leads
Power (Watts)	6 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	8 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

REM6E-2424 Series

Isolated DC/DC Converters - Through Hole 6W 18-36Vin +/-12Vout 250mA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Approval Agency	Package / Case	Applications	Mounting Type	Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 1	Efficiency	Features	Voltage - Output 2	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)
RECOM Power REM6E-1215D/R6/A/SMD/X1	-40 °C	75 ░C	2	6 W	0.43 "	10.9 mm	31.8 mm	0.8 in	1.25 "	20.3 mm	18 V	CB cURus	24-SMD Module 18 Leads	Medical	Surface Mount	Isolated Module	9 V	6000 V	15 V	83 %	OCP OVP SCP UVLO	-15 V
RECOM Power REM6E-2415S/R6/A/SMD	-40 °C	75 ░C	1	6 W	0.43 "	10.9 mm	31.8 mm	0.8 in	1.25 "	20.3 mm	36 V	CB cURus	24-SMD Module 18 Leads	Medical	Surface Mount	Isolated Module	18 V	6000 V	15 V	84 %	OCP OVP SCP		400 mA
RECOM Power REM6E-1212D/R8/A/CTRL	-40 °C	75 ░C	2	6 W	0.4 "		31.8 mm	0.8 in	1.25 "		18 V	CB cURus	24-DIP Module 7 Leads	Medical	Through Hole	Isolated Module	9 V	8 kV	12 V		OCP OVP Remote On/Off SCP	-12 V		10.2 mm	20.3 mm	250 mA	250 mA
RECOM Power REM6E-2412D/R8/A	-40 °C	75 ░C	2	6 W	0.4 "		31.8 mm	0.8 in	1.25 "		36 V	CB cURus	24-DIP Module 7 Leads	Medical	Through Hole	Isolated Module	18 V	8 kV	12 V	83 %	OCP OVP SCP	-12 V		10.2 mm	20.3 mm	250 mA	250 mA
RECOM Power REM6E-2409S/R8/A/CTRL	-40 °C	75 ░C	1	6 W	0.4 "		31.8 mm	0.8 in	1.25 "		36 V	CB cURus	24-DIP Module 7 Leads	Medical	Through Hole	Isolated Module	18 V	8 kV	9 V		OCP OVP Remote On/Off SCP		667 mA	10.2 mm	20.3 mm
RECOM Power REM6E-2424S/R8/A/CTRL	-40 °C	75 ░C	1	6 W	0.4 "		31.8 mm	0.8 in	1.25 "		36 V	CB cURus	24-DIP Module 7 Leads	Medical	Through Hole	Isolated Module	18 V	8 kV	24 V	84 %	OCP OVP Remote On/Off SCP		250 mA	10.2 mm	20.3 mm
RECOM Power REM6E-1215D/R8/A/X1	-40 °C	75 ░C	2	6 W	0.4 "		31.8 mm	0.8 in	1.25 "		18 V	CB cURus	24-DIP Module 7 Leads	Medical	Through Hole	Isolated Module	9 V	8 kV	15 V	83 %	OCP OVP SCP UVLO	-15 V		10.2 mm	20.3 mm
RECOM Power REM6E-4824S/R6/A/SMD	-40 °C	75 ░C	1	6 W	0.43 "	10.9 mm	31.8 mm	0.8 in	1.25 "	20.3 mm	75 V	CB cURus	24-SMD Module 18 Leads	Medical	Surface Mount	Isolated Module	36 V	6000 V	24 V	85 %	OCP OVP SCP		250 mA
RECOM Power REM6E-4812S/R10/A/CTRL	-40 °C	75 ░C	1	6 W	0.4 "		31.8 mm	0.8 in	1.25 "		75 V	CB cURus	24-DIP Module 7 Leads	Medical	Through Hole	Isolated Module	36 V	10 kV	12 V	84 %	OCP OVP Remote On/Off SCP		500 mA	10.2 mm	20.3 mm
RECOM Power REM6E-1209S/R8/A/CTRL	-40 °C	75 ░C	1	6 W	0.4 "		31.8 mm	0.8 in	1.25 "		18 V	CB cURus	24-DIP Module 7 Leads	Medical	Through Hole	Isolated Module	9 V	8 kV	9 V	81 %	OCP OVP Remote On/Off SCP		667 mA	10.2 mm	20.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 44.84
Newark	Each	10	$ 53.85
		25	$ 49.62
		50	$ 46.52
		100	$ 43.98
		250	$ 40.03
Sager	N/A	1	$ 46.98
		5	$ 45.46
		10	$ 43.37
		25	$ 42.08
		50	$ 41.46
		100	$ 40.27
		250	$ 37.58

Description

General part information

REM6E-2424 Series

Isolated DC/DC Converters - Through Hole 6W 18-36Vin +/-12Vout 250mA

Documents

Technical documentation and resources

Datasheet

Document

Technical Data Sheet EN

Datasheet
