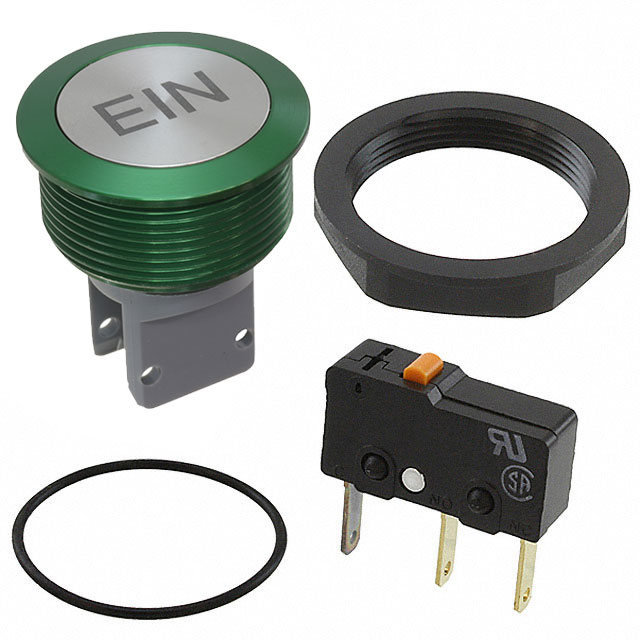

1241.6632.5120061

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 250V

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6632.5120061

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal
Voltage Rating - AC	250 V

Part	Type	Mechanical Life	Ingress Protection	Electrical Life	Circuit	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Actuator Type	Color - Actuator/Cap	Mounting Type	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Termination Style
SCHURTER Inc. 1241.6632.3120000	Anti-Vandal	1500000 Cycles	IP40	50000 Cycles	SPDT	5 A	-25 °C	85 °C	No Marking	Button Flush Round	Red	Panel Mount Front	On-Mom	125 V	22.1 mm	Quick Connect - 0.110" (2.8mm)
SCHURTER Inc. 1241.6632.5120000	Anti-Vandal	1500000 Cycles	IP40	50000 Cycles	SPDT	5 A	-25 °C	85 °C	No Marking	Button Flush Round	Green	Panel Mount Front	On-Mom	125 V	22.1 mm	Quick Connect - 0.110" (2.8mm)
SCHURTER Inc. 1241.6632.1120000	Anti-Vandal	1500000 Cycles	IP40	200000 Cycles	SPDT	5 A	-25 °C	85 °C	No Marking	Button Flush Round	Silver	Panel Mount Front	On-Mom	125 V	22.1 mm	Quick Connect - 0.110" (2.8mm)
SCHURTER Inc. 1241.6632.5120061	Anti-Vandal	1500000 Cycles	IP40	50000 Cycles	SPDT	5 A	-25 °C	85 °C	No Marking	Button Flush Round	Green	Panel Mount Front	On-Mom	250 V	22.1 mm	Quick Connect - 0.110" (2.8mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 45.14

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
