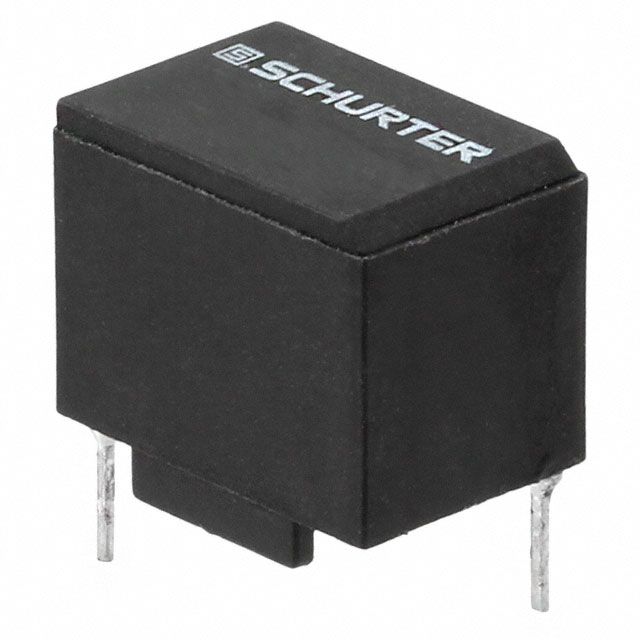

DSH-14-0003

Active

SCHURTER Inc.

FIXED IND 2A 25 MOHM TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

FIXED IND 2A 25 MOHM TH

Technical Specifications

Parameters and characteristics for this part

Specification	DSH-14-0003

Current Rating (Amps)	2 A
DC Resistance (DCR)	25 mOhm
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Horizontal - Corner Terminals
Size / Dimension [x]	0.591 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	10.5 mm
Size / Dimension [y]	0.413 in

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Current Rating (Amps)	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]
SCHURTER Inc. DSH-14-0003	0.591 in	10.5 mm	0.413 in	15 mm	Through Hole	Radial Horizontal - Corner Terminals	2 A	25 mOhm	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 3.89

General part information

Inductor 2 A 25mOhm Radial, Horizontal - Corner Terminals
