072,BK

Active

Serpac

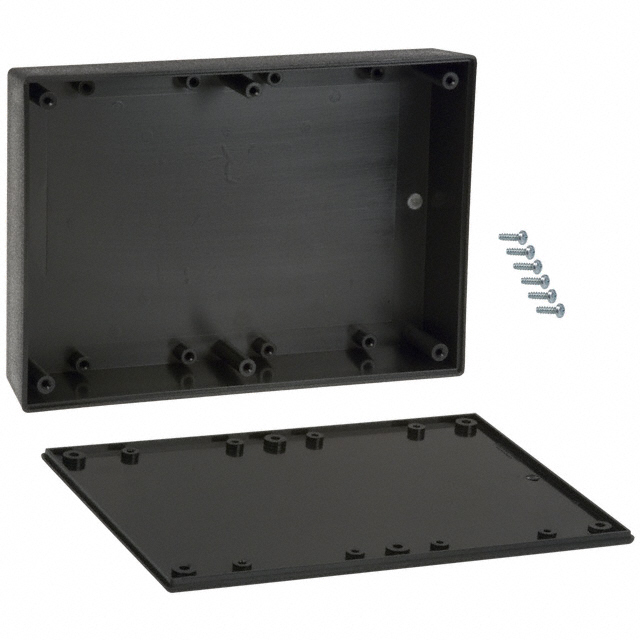

BOX ABS BLACK 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	072,BK

Area (L x W) [custom]	217 cm˛
Area (L x W) [custom]	33.6 in˛
Color	Black
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports
Height [z]	35.56 mm
Height [z]	1.4 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in

Part	Container Type	Ratings	Features	Material	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Design	Thickness	Thickness	Color
Serpac 072,AL	Box	IP40 NEMA 1	PCB Supports	Plastic ABS	217 cm˛	33.6 in˛	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	35.56 mm	1.4 in	Cover Included Hand Held	2.54 mm	0.1 in	Almond
Serpac 072,BK	Box	IP40 NEMA 1	PCB Supports	Plastic ABS	217 cm˛	33.6 in˛	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	35.56 mm	1.4 in	Cover Included Hand Held	2.54 mm	0.1 in	Black
Serpac 072,GY	Box	IP40 NEMA 1	PCB Supports	Plastic ABS	217 cm˛	33.6 in˛	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	35.56 mm	1.4 in	Cover Included Hand Held	2.54 mm	0.1 in	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.400" (35.56mm)
