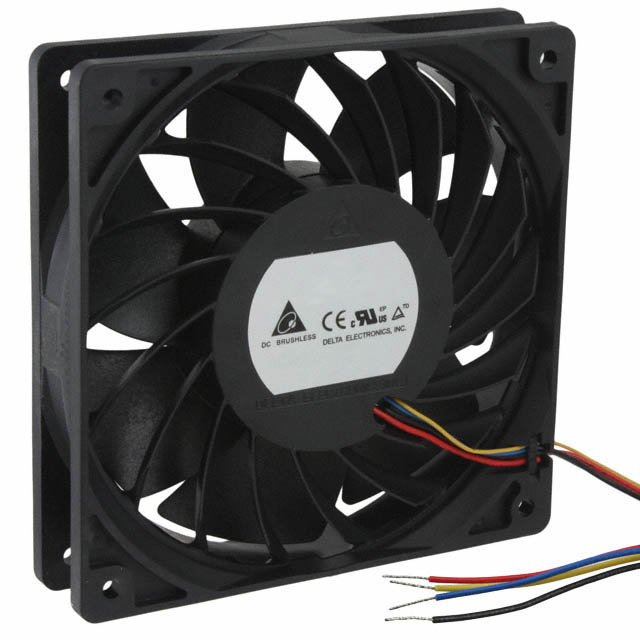

THB1224B-PM00
ActiveDelta Electronics
FAN AXIAL 120X25.4MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
THB1224B-PM00
ActiveDelta Electronics
FAN AXIAL 120X25.4MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | THB1224B-PM00 |
|---|---|
| Air Flow | 174.7 CFM |
| Air Flow | 4.89 m³/min |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.95 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 65 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| RPM | 8300 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 2.139 in H2O |
| Static Pressure | 532.8 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.5 VDC |
| Voltage Range [Min] | 18 VDC |
| Weight | 198 g |
| Weight | 0.437 lb |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 67.58 | |
| 10 | $ 61.14 | |||
| 25 | $ 53.09 | |||
| 54 | $ 49.88 | |||
| 108 | $ 43.44 | |||
Description
General part information
THB1224 Series
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 174.7 CFM (4.89m³/min) 4 Wire Leads
