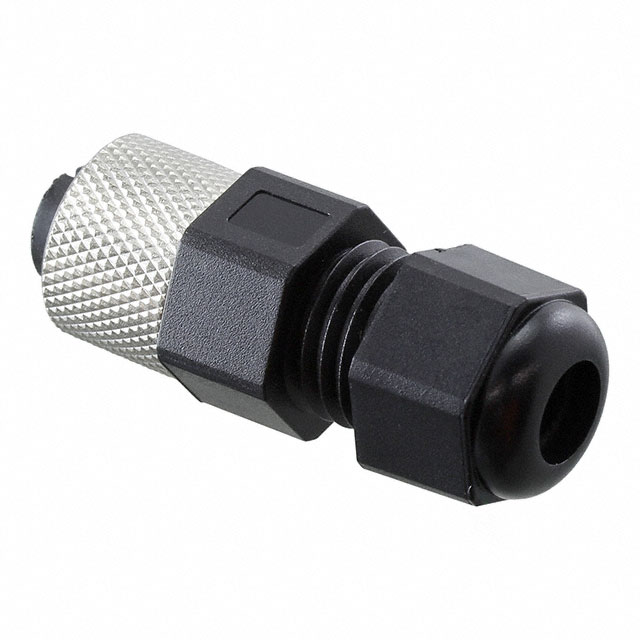

510F-3032-W05

Unknown

CnC Tech, LLC

CONN PLUG FMALE 5POS SOLDER CUP

Search across all available documentation for this part.

Unknown

CnC Tech, LLC

CONN PLUG FMALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	510F-3032-W05

Backshell Material, Plating	Polycarbonate (PC)
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	6 µin
Contact Finish Thickness - Mating	0.152 µm
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Unshielded

Part	Shell Finish	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shielding	Primary Material	Contact Material	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Orientation	Backshell Material, Plating	Shell Material	Features	Connector Type	Contact Finish - Mating
CnC Tech, LLC 510F-3032-W05	Nickel	Glass Filled Nylon 6/6 Polyamide (PA66)	6 µin	0.152 µm	M12-5	Unshielded	Metal	Copper Alloy	IP68 - Dust Tight Waterproof	Black Silver	-40 °C	105 ░C	Free Hanging (In-Line)	A	Polycarbonate (PC)	Brass	Backshell Coupling Nut	Female Sockets Plug	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
