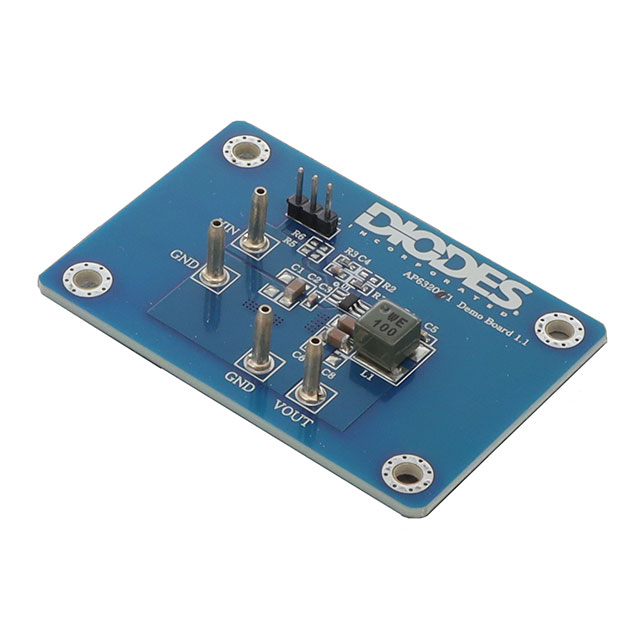

AP63201WU-EVM

Active

Diodes Inc

EVAL BOARD FOR AP63201

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP63201WU-EVM

Active

Diodes Inc

EVAL BOARD FOR AP63201

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP63201WU-EVM

Board Type	Fully Populated
Current - Output	2 A
Frequency - Switching	500 kHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP63201
Voltage - Input [Max]	32 V
Voltage - Input [Min]	3.8 V
Voltage - Output	5 V

AP63201 Series

3.8V-32V INPUT, 2A Low Iq Synchronous Buck with Enhanced EMI Reduction

Part	Topology	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching	Number of Outputs	Output Configuration	Output Type	Voltage - Output (Max) [Max]	Synchronous Rectifier	Function	Package / Case	Supplier Device Package	Current - Output	Voltage - Output	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Outputs and Type	Outputs and Type	Supplied Contents	Utilized IC / Part	Regulator Topology
Diodes Inc AP63201WU-7	Buck	1.2 V	3.8 V	32 V	Surface Mount	85 °C	-40 °C	500 kHz	1	Positive	Adjustable	12 V		Step-Down	SOT-23-6 Thin TSOT-23-6	TSOT-23-6	2 A
Diodes Inc AP63201WU-EVM								500 kHz									2 A	5 V	Fully Populated	32 V	3.8 V	DC/DC Step Down	Non-Isolated	1	Board(s)	AP63201	Buck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.39

Description

General part information

AP63201 Series

The AP63200/AP63201/AP63203/AP63205 is a 2A, synchronous buck converter with a wide input voltage range of 3.8V to 32V and fully integrates a 125mΩ high-side power MOSFET and a 68mΩ low-side power MOSFET to provide high-efficiency step-down DC/DC conversion.
