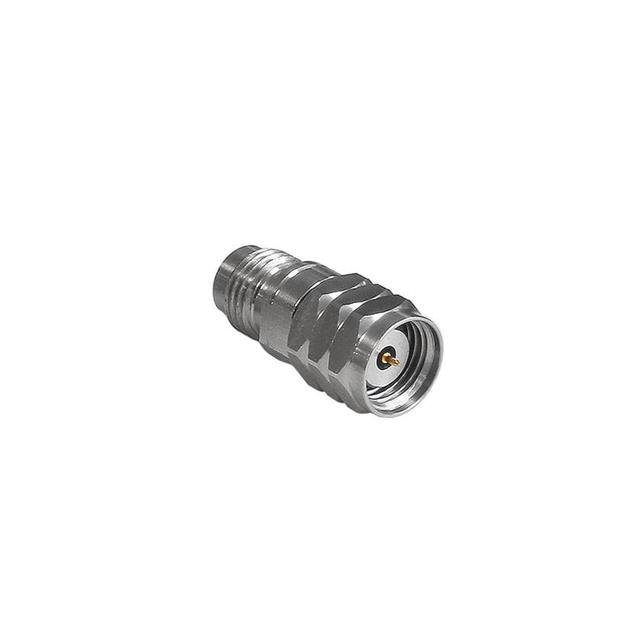

RFAA185J240J

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 1.85MM COAXIAL, JACK, 2.4MM COAXIAL, JACK, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFAA185J240J

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 1.85MM COAXIAL, JACK, 2.4MM COAXIAL, JACK, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFAA185J240J

Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	1.85mm Jack, Female Socket
Convert To (Adapter End)	2.4 mm
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Style	Straight

RFAA185 Series

Part	Convert To (Adapter End)	Center Contact Material	Convert From (Adapter End)	Convert From (Adapter End)	Frequency - Max [Max]	Mounting Type	Style	Impedance	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Adapter Series [Min]	Adapter Series [Max]	Adapter Type	Body Material	Dielectric Material	Convert To (Adapter End)	Center Gender
BULGIN LIMITED RFAA185P185J	1.85mm Jack Female Socket	Beryllium Copper	1.85 mm	Plug Male Pin	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Same Series	65 °C	-40 °C	500	1.85 mm	1.85 mm	Plug to Jack	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFAA185J240J		Beryllium Copper		1.85mm Jack Female Socket	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Between Series	65 °C	-40 °C	500			Jack to Jack	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	Female to Female
BULGIN LIMITED RFAA185P292P	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper	1.85 mm	Plug Male Pin	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Between Series	65 °C	-40 °C	500	1.85 mm	2.92 mm	Plug to Plug	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)		Male to Male
BULGIN LIMITED RFAA185J185J	1.85mm Jack Female Socket	Beryllium Copper		1.85mm Jack Female Socket	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Same Series	65 °C	-40 °C	500	1.85 mm	1.85 mm	Jack to Jack	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)		Female to Female
BULGIN LIMITED RFAA185P292J	OS-2.9 Jack Female Socket	Beryllium Copper	1.85 mm	Plug Male Pin	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Between Series	65 °C	-40 °C	500	1.85 mm	2.92 mm	Plug to Jack	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.92 mm
BULGIN LIMITED RFAA185J292P	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper		1.85mm Jack Female Socket	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Between Series	65 °C	-40 °C	500	1.85 mm	2.92 mm	Plug to Jack	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFAA185J350J	3.5mm Jack Female Socket	Beryllium Copper		1.85mm Jack Female Socket	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Between Series	65 °C	-40 °C	500	1.85 mm	3.5 mm	Jack to Jack	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)		Female to Female
BULGIN LIMITED RFAA185P350P		Beryllium Copper	1.85 mm	Plug Male Pin	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Between Series	65 °C	-40 °C	500	1.85 mm	3.5 mm	Plug to Plug	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)		Male to Male
BULGIN LIMITED RFAA185P185P	1.85mm Plug Male Pin	Beryllium Copper	1.85 mm	Plug Male Pin	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Same Series	65 °C	-40 °C	500	1.85 mm	1.85 mm	Plug to Plug	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)		Male to Male
BULGIN LIMITED RFAA185J240P	2.4mm (APC-2.4 OS-50) Plug Male Pin	Beryllium Copper		1.85mm Jack Female Socket	65 GHz	Free Hanging (In-Line)	Straight	50 Ohms	Between Series	65 °C	-40 °C	500			Plug to Jack	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 318.05
Newark	Each	1	$ 500.36
		100	$ 490.35
		200	$ 480.55

Description

General part information

RFAA185 Series

Adapter Coaxial Connector 1.85mm Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
