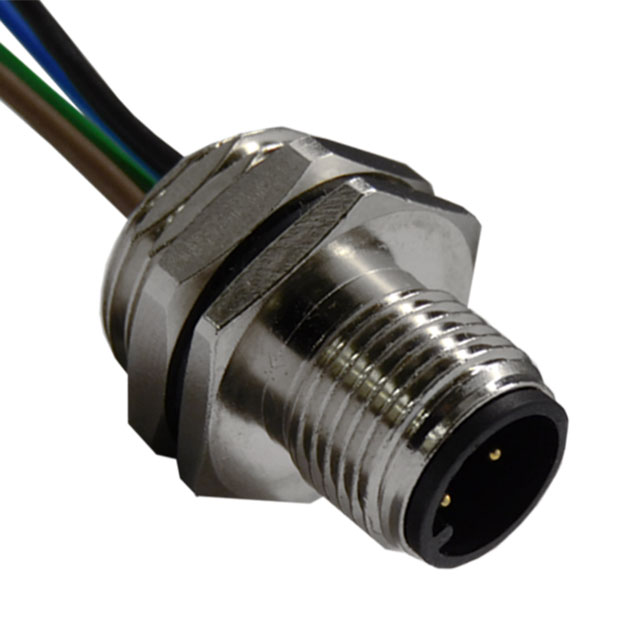

SS-12000-009
ActiveBEL MAGNETIC SOLUTIONS
CIRC CBL 4POS RCPT TO WIRE 1.64'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS-12000-009
ActiveBEL MAGNETIC SOLUTIONS
CIRC CBL 4POS RCPT TO WIRE 1.64'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-12000-009 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 4 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 1.64 ft |
| Length [x] | 500 mm |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.09 | |
| 10 | $ 10.27 | |||
| 25 | $ 9.63 | |||
| 50 | $ 9.17 | |||
| 200 | $ 8.32 | |||
| 400 | $ 7.92 | |||
| 600 | $ 7.70 | |||
| 1000 | $ 7.42 | |||
Description
General part information
M12 A-Code Series
Circular Metric Connectors M12 A-Code Male Receptacle 5Contacts
