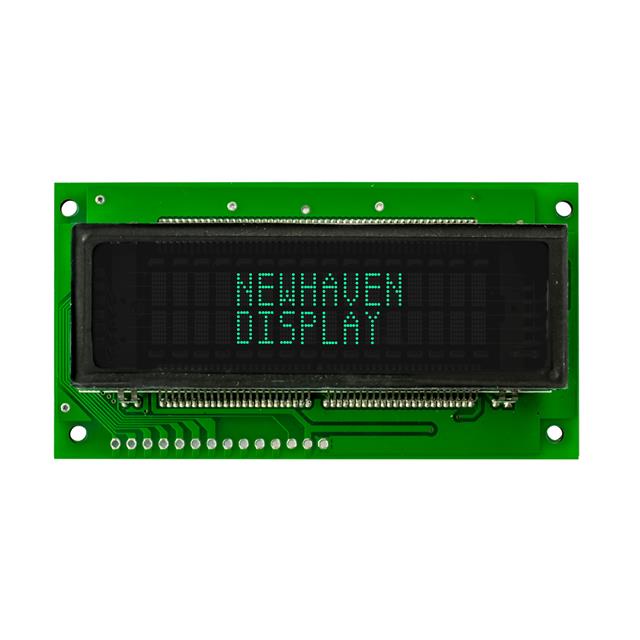

M0216SD-162SDAR8
ActiveNewhaven Display Intl
MODULE VF CHAR 2X16 5.34MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M0216SD-162SDAR8
ActiveNewhaven Display Intl
MODULE VF CHAR 2X16 5.34MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0216SD-162SDAR8 |
|---|---|
| Character Size [y] | 2.1 mm |
| Character Size [z] | 5.34 mm |
| Controller Type | PT6314 |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 8 Dots |
| Interface | Parallel/Serial |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 84 mm |
| Outline L x W x H [y] | 44 mm |
| Outline L x W x H [z] | 16.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1000 | $ 30.28 | |
Description
General part information
M0216SD Series
Vacuum Fluorescent Display (VFD) 16 x 2 Character 5V Parallel/Serial 84.00mm x 44.00mm x 16.60mm
