CFM1505S
ObsoleteCincon Electronics Co. LTD
DC-DC POWER MODULES ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM1505S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output (Max) [Max] | 630 mA |
| Efficiency | 83 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 69.9 mm |
| Size / Dimension [x] | 2.75 in |
| Size / Dimension [y] | 48 mm |
| Size / Dimension [y] | 1.89 in |
| Size / Dimension [z] | 0.91 in |
| Size / Dimension [z] | 23 mm |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

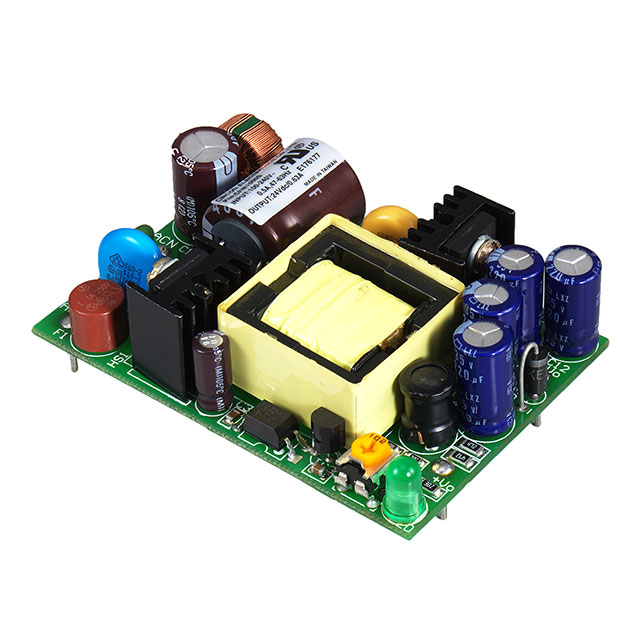

CFM1505 Series
Open Frame AC DC Converters 1 Output 24V 630mA 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
