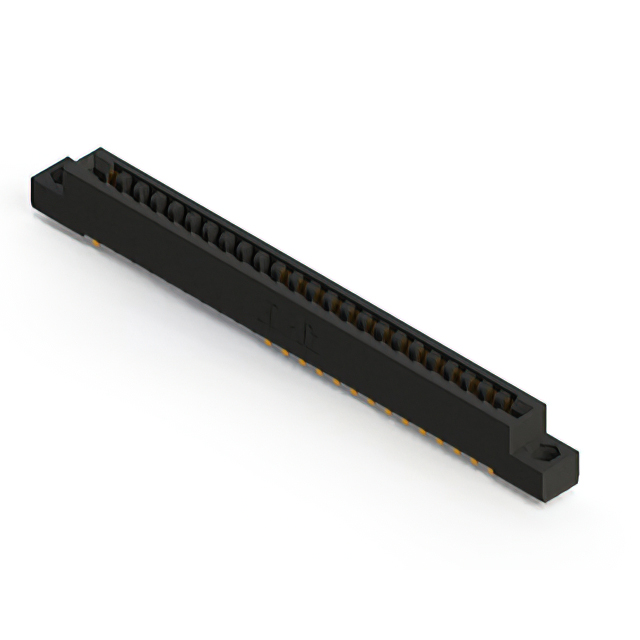

357-024-559-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-024-559-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-024-559-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-024 Series
...
| Part | Color | Pitch [x] | Pitch [x] | Contact Finish | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Contact Type | Contact Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Card Type | Gender | Read Out | Number of Rows | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 0.156 in | 3.96 mm | Tin | Solder Eyelet(s) | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 24 | Semi Bellows | Copper Alloy | Through Hole | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Female | Single | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | |||
EDAC Inc. | Black | 0.156 in | 3.96 mm | Gold | Solder | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 12 | Semi Bellows | Copper Alloy | Through Hole Right Angle | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Female | Dual | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 10 Áin | 0.25 Ám | |
EDAC Inc. | Black | 0.156 in | 3.96 mm | Gold | Wire Wrap | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 12 | Semi Bellows | Copper Alloy | Through Hole | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Female | Dual | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 10 Áin | 0.25 Ám | |
EDAC Inc. | Black | 0.156 in | 3.96 mm | Gold | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 24 | Semi Bellows | Copper Alloy | Through Hole Right Angle | -40 °C | 105 ░C | 1 | Non Specified - Dual Edge | Female | Dual | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 48 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | Black | 0.156 in | 3.96 mm | Gold | Solder | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 24 | Semi Bellows | Copper Alloy | Through Hole Right Angle | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Female | Single | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 10 Áin | 0.25 Ám | |
EDAC Inc. | Black | 0.156 in | 3.96 mm | Tin | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 24 | Semi Bellows | Copper Alloy | Through Hole | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Female | Single | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | |||||
EDAC Inc. | Black | 0.156 in | 3.96 mm | Gold | Solder Eyelet(s) | 12 | Semi Bellows | Copper Alloy | Through Hole | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Female | Dual | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Black | 0.156 in | 3.96 mm | Gold | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 12 | Semi Bellows | Copper Alloy | Through Hole Right Angle | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Female | Dual | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | Black | 0.156 in | 3.96 mm | Tin | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 12 | Semi Bellows | Copper Alloy | Through Hole Right Angle | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Female | Dual | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Card Guides | ||||
EDAC Inc. | Black | 0.156 in | 3.96 mm | Tin | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 24 | Semi Bellows | Copper Alloy | Through Hole | -40 °C | 105 ░C | 1 | Non Specified - Dual Edge | Female | Dual | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 48 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-024 Series
24 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
