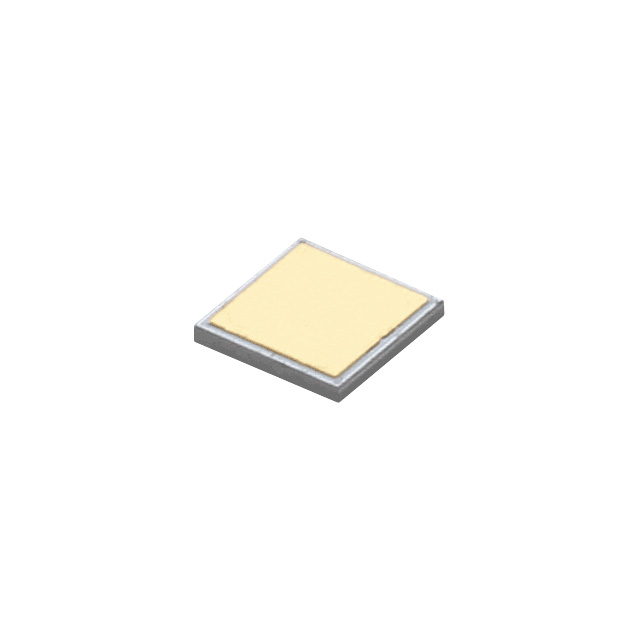

935142521410-T3T
ActiveMurata Power Solutions Inc.
FILM CAPACITOR, SILICON, 68V, 15% +TOL, 15% -TOL, 70PPM/K TC, 0.001UF, SURFACE MOUNT, 0202, CHIP
Deep-Dive with AI
Search across all available documentation for this part.
935142521410-T3T
ActiveMurata Power Solutions Inc.
FILM CAPACITOR, SILICON, 68V, 15% +TOL, 15% -TOL, 70PPM/K TC, 0.001UF, SURFACE MOUNT, 0202, CHIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 935142521410-T3T |
|---|---|
| Applications | High Stability, Wirebond, Vertical Silicon Cap |
| Capacitance | 0.001 µF |
| ESL (Equivalent Series Inductance) | 50 pH |
| ESR (Equivalent Series Resistance) | 50 mOhms |
| Features | High Reliability, Low Profile |
| Height [z] | 0.27 mm |
| Height [z] | 0.011 in |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0505 Metric, 0202 |
| Size / Dimension [x] | 0.02 " |
| Size / Dimension [x] | 0.5 mm |
| Size / Dimension [y] | 0.5 mm |
| Size / Dimension [y] | 0.02 in |
| Tolerance | 15 % |
| Voltage - Breakdown | 150 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.13 | |
| 10 | $ 5.27 | |||
| 50 | $ 4.78 | |||
| 100 | $ 3.95 | |||
| 500 | $ 3.43 | |||
| Digi-Reel® | 1 | $ 6.13 | ||
| 10 | $ 5.27 | |||
| 50 | $ 4.78 | |||
| 100 | $ 3.95 | |||
| 500 | $ 3.43 | |||
| Tape & Reel (TR) | 1000 | $ 3.19 | ||
| 2000 | $ 3.13 | |||
Description
General part information
935142 Series
1000 pF Silicon Capacitor 150 V 0202 (0505 Metric)
