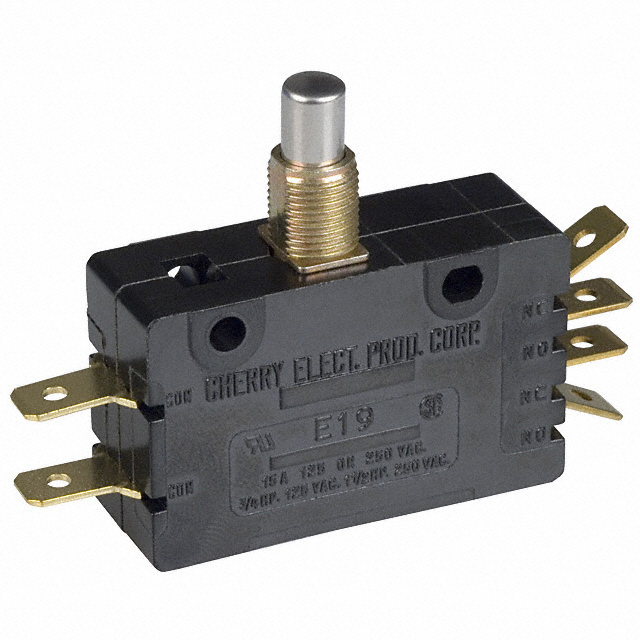

E19-00M - E19-00M

E19-00M

Active
ZF Electronics

BASIC / SNAP ACTION SWITCHES 15A W/THD BUSHING

Deep-Dive with AI

Search across all available documentation for this part.

E19-00M - E19-00M

E19-00M

Active
ZF Electronics

BASIC / SNAP ACTION SWITCHES 15A W/THD BUSHING

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationE19-00M
Actuator TypeOvertravel Plunger
CircuitDPDT
Current Rating (Amps)15 A
Differential Travel0.015 in
Differential Travel0.38 mm
Electrical Life6000 Cycles
Operating Force850 gf
Operating Position0.812 in
Operating Position20.6 mm
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Overtravel5.6 mm
Overtravel0.219 in
Pretravel0.05 in
Pretravel1.27 mm
Switch FunctionOn-Mom
Termination StyleQuick Connect - 0.250" (6.3mm)
Voltage Rating - AC125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 13.44
10$ 10.42
150$ 8.50
1050$ 7.40
SagerN/A 1$ 8.15
184$ 7.92
368$ 7.71
921$ 7.40
1842$ 7.04

Description

General part information

E Series
