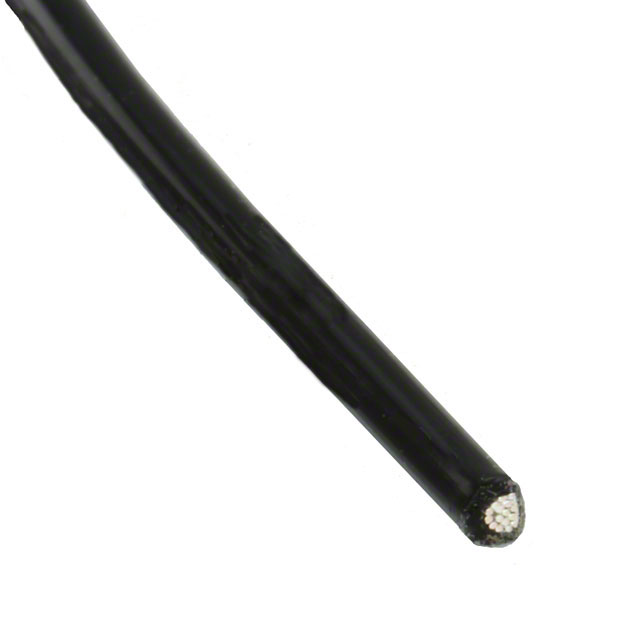

2475/22 BK-500

Active

Daburn Electronics

HOOK-UP STRND 22AWG BLACK 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2475/22 BK-500

Active

Daburn Electronics

HOOK-UP STRND 22AWG BLACK 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2475/22 BK-500

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Features	High Voltage
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Black
Length	15.24 m
Length [x]	30.5 m, 152.4 m
Length [x]	100 ft, 50 ft, 500 '
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Voltage	20 kVDC
Wire Gauge	22 AWG

2475/22 Series

Part	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand [custom]	Conductor Strand	Jacket (Insulation) Material	Wire Gauge	Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length	Length
Daburn Electronics 2475/22 VI-100	30.5 m	100 ft	Hook-Up	0.38 mm	0.015 in	Violet	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated
Daburn Electronics 2475/22 WH-500	30.5 m	50 ft 100 ft	Hook-Up	0.38 mm	0.015 in		19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated	15.24 m
Daburn Electronics 2475/22 BU-500	152.4 m	500 '	Hook-Up	0.38 mm	0.015 in	Blue	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated
Daburn Electronics 2475/22 CL-1000			Hook-Up	0.38 mm	0.015 in	Clear	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated	304.8 m	1000 ft
Daburn Electronics 2475/22 BK-100	30.5 m	100 ft	Hook-Up	0.38 mm	0.015 in	Black	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated
Daburn Electronics 2475/22 CL-500	152.4 m	500 '	Hook-Up	0.38 mm	0.015 in	Clear	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated
Daburn Electronics 2475/22 CL-100	30.5 m	100 ft	Hook-Up	0.38 mm	0.015 in	Clear	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated
Daburn Electronics 2475/22 BK-1000			Hook-Up	0.38 mm	0.015 in	Black	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated	304.8 m	1000 ft
Daburn Electronics 2475/22 BK-500	30.5 m 152.4 m	50 ft 100 ft 500 '	Hook-Up	0.38 mm	0.015 in	Black	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated	15.24 m
Daburn Electronics 2475/22 BU-100	30.5 m	100 ft	Hook-Up	0.38 mm	0.015 in	Blue	19 Strands	34 AWG	Fluorinated Ethylene-Propylene (FEP)	22 AWG	20 kVDC	High Voltage	-65 ░C	200 °C	Copper Silver Coated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 368.24
		1	$ 184.73
		5	$ 327.32
		5	$ 164.21
		10	$ 148.81
		10	$ 296.64
	Spool	1	$ 2190.36
		2	$ 2080.62
		3	$ 2018.51
		5	$ 1942.36

Description

General part information

2475/22 Series

22 AWG Hook-Up Wire 19/34 Black 20kV 100.0' (30.5m)
