MBN1.38SV50
ActiveTechflex

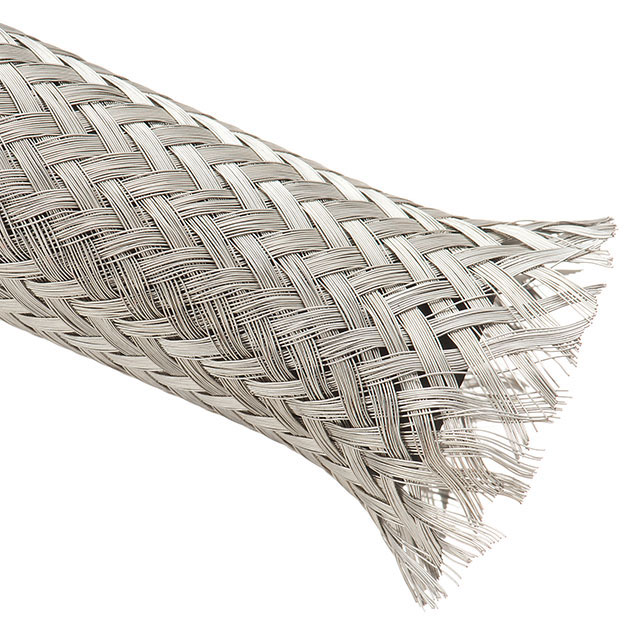

GROUND BRAID TUBE 1.38"DIA X 50'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MBN1.38SV50
ActiveTechflex
GROUND BRAID TUBE 1.38"DIA X 50'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MBN1.38SV50 |
|---|---|
| Length | 15.24 m |
| Length | 50 ft |
| Material | Copper, Tinned |
| Number of Carriers | 48 |
| Size, Supplied [diameter] | 34.93 mm |
| Size, Supplied [diameter] | 1 3/8 |
| Size, Supplied [diameter] | 1.375 in |
| Thickness | 0.64 mm |
| Thickness | 0.025 in |
| Type | Tubular |
| Wire Gauge - Ends | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 343.07 | |
| 2 | $ 315.52 | |||
| 3 | $ 300.45 | |||
| 5 | $ 282.49 | |||
| 7 | $ 271.25 | |||
| 10 | $ 259.82 | |||
| 25 | $ 232.63 | |||
Description
General part information
MBN1 Series
Tubular Ground Braid 1.375" (34.93mm, 1 3/8") - Outer Dia X 50.0' (15.24m) 30 AWG
