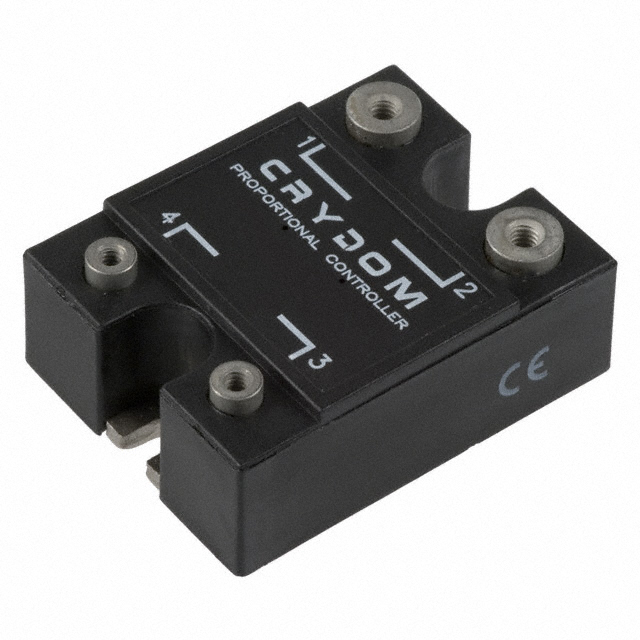

10PCV2415
ActiveSensata-Crydom
SSR RELAY SPST-NO 15A 100-240V
Deep-Dive with AI
Search across all available documentation for this part.
10PCV2415
ActiveSensata-Crydom
SSR RELAY SPST-NO 15A 100-240V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10PCV2415 |
|---|---|
| Approval Agency | cURus, CSA, CE |
| Load Current | 15 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Proportional Control |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 10 V |
| Voltage - Input [Min] | 2 V |
| Voltage - Load [Max] | 240 V |
| Voltage - Load [Min] | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 161.30 | |
| 10 | $ 153.62 | |||
| 50 | $ 146.64 | |||
Description
General part information
10PCV2 Series
Solid State SPST-NO (1 Form A) Hockey Puck
Documents
Technical documentation and resources
