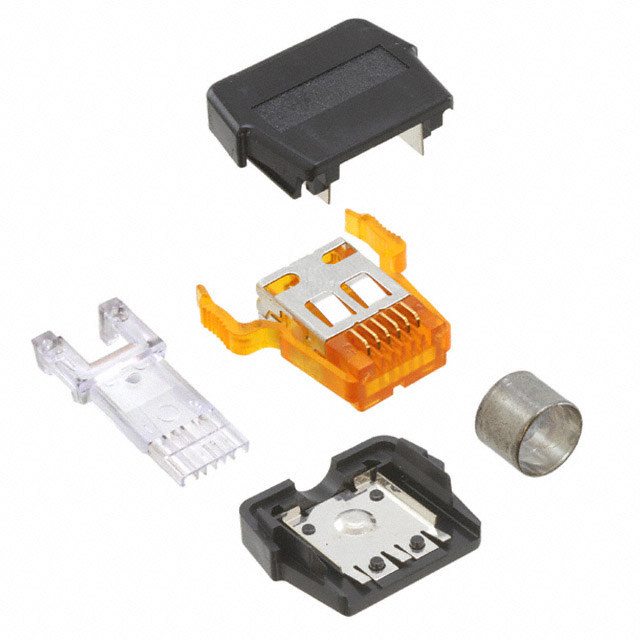

SS-310606-3-60

Obsolete

BEL MAGNETIC SOLUTIONS

ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS

Search across all available documentation for this part.

Obsolete

BEL MAGNETIC SOLUTIONS

ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	SS-310606-3-60

Cable Type	Round Cable, Solid, Stranded Wires
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Compu-Shield, Keyed
Housing Material	Polycarbonate (PC)
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Shielding	Shielded
Termination	IDC
Voltage Rating	150 VDC

Part	Housing Material	Shielding	Contact Finish	Termination	Number of Positions/Contacts	Color	Features	Current Rating (Amps)	Connector Type	Voltage Rating	Cable Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness
BEL MAGNETIC SOLUTIONS SS-310606-1-60	Polycarbonate (PC)	Shielded	Gold	IDC	6p6c (RJ11 RJ12 RJ14 RJ25)	Blue	Compu-Shield Keyed	1.5 A	Plug	150 VDC	Round Cable Solid Stranded Wires	Copper Alloy	50 µin	1.27 µm
BEL MAGNETIC SOLUTIONS SS-310606-3-60	Polycarbonate (PC)	Shielded	Gold	IDC	6p6c (RJ11 RJ12 RJ14 RJ25)		Compu-Shield Keyed	1.5 A	Plug	150 VDC	Round Cable Solid Stranded Wires	Copper Alloy	50 µin	1.27 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Position Shielded IDC

Technical documentation and resources

No documents available
