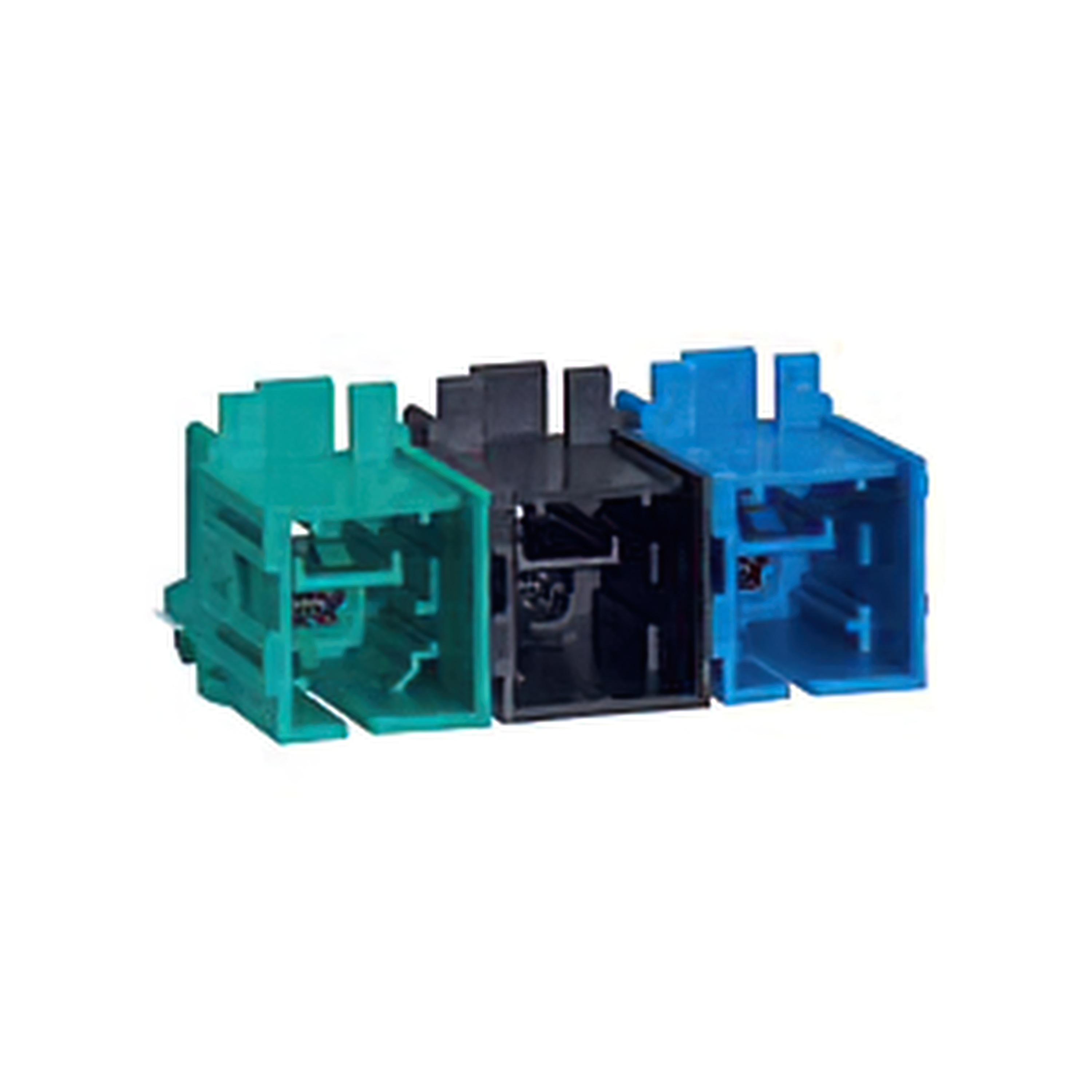

0347873004
ActiveMolex
HSSTAC RAHDR 3BAY HSD-HSA-HSE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0347873004
ActiveMolex
HSSTAC RAHDR 3BAY HSD-HSA-HSE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0347873004 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Height | 19.32 mm |
| Insulation Height | 0.761 in |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.031 in |
| Pitch - Mating | 0.8 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 288 | $ 18.09 | |
Description
General part information
034787 Series
Connector Header Through Hole, Right Angle 15 position 0.031" (0.80mm)
