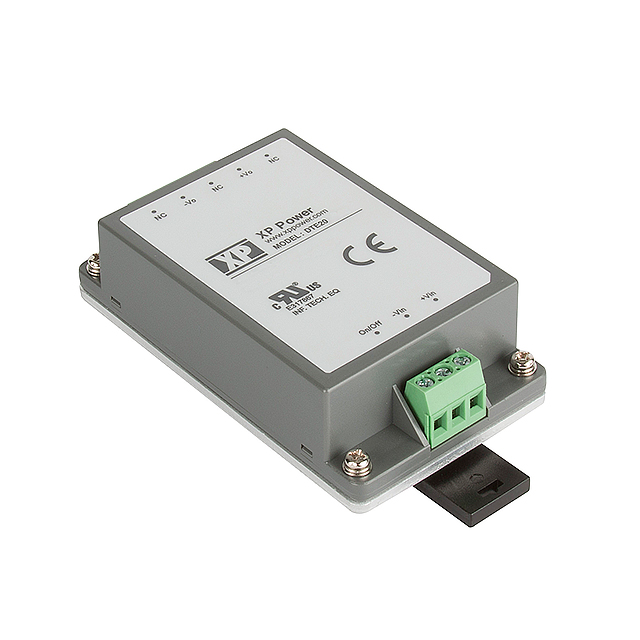

DTE2024S12-D

Active

XP POWER

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, ITE, 4:1, 20 W, 1 OUTPUT, 12 V, 1.67 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

DTE2024S12-D

Active

XP POWER

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, ITE, 4:1, 20 W, 1 OUTPUT, 12 V, 1.67 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DTE2024S12-D

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	1.67 A
DC Voltage - Input (Max) [Max]	36 V
DC Voltage - Input (Min) [Min]	9 V
Efficiency	90 %
Input Type	DC
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	20 W
Size / Dimension [x]	3.78 "
Size / Dimension [x]	96 mm
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.13 in
Size / Dimension [z]	0.92 "
Size / Dimension [z]	23.3 mm
Standard Number	62368-1
Voltage - Output 1	12 V

DTE20 Series

Part	For Use With/Related Products	Accessory Type	Standard Number	Applications	Mounting Type	Voltage - Output 1	Type	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]
XP POWER DTE20 DIN CLIP	DTE20 DIN Rail	DIN Rail Clip
XP POWER DTE2048S48			62368-1	ITE (Commercial)	Chassis Mount	48 V	Enclosed	20 W	420 mA	90 %	CB CE cURus	18 V	75 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2024S12-D			62368-1	ITE (Commercial)		12 V		20 W	1.67 A	90 %	CB CE cURus			1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C	DC	36 V	9 V
XP POWER DTE2024S24			62368-1	ITE (Commercial)	Chassis Mount	24 V	Enclosed	20 W	835 mA	90 %	CB CE cURus	9 V	36 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2048S5V1			62368-1	ITE (Commercial)	Chassis Mount	5.1 V	Enclosed	20 W	4 A	89 %	CB CE cURus	18 V	75 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2024S5V1			62368-1	ITE (Commercial)	Chassis Mount	5.1 V	Enclosed	20 W	4 A	90 %	CB CE cURus	9 V	36 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.93
Newark	Each	10	$ 66.67
		25	$ 63.84
		100	$ 59.58

Description

General part information

DTE20 Series

The DTE2024S12-D from XP Power is a DTE20 series 20W DC to DC converter. It is a fully encapsulated chassis mount DC to DC converter with wide 4:1 input range. The converter features short circuit protection features short circuit protection (trip & restart (hicc-up mode), auto recovery), overload protection and overvoltage protection. It has isolation voltage of 2500VDC for 60s, isolation resistance of 1000Mohm at 500 VDC and input to output capacitance of 2200pF. This DC to DC converter is approved by IEC60950-1, UL60950-1, CB and TUV standards.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Certificate of Conformity EN

Datasheet
