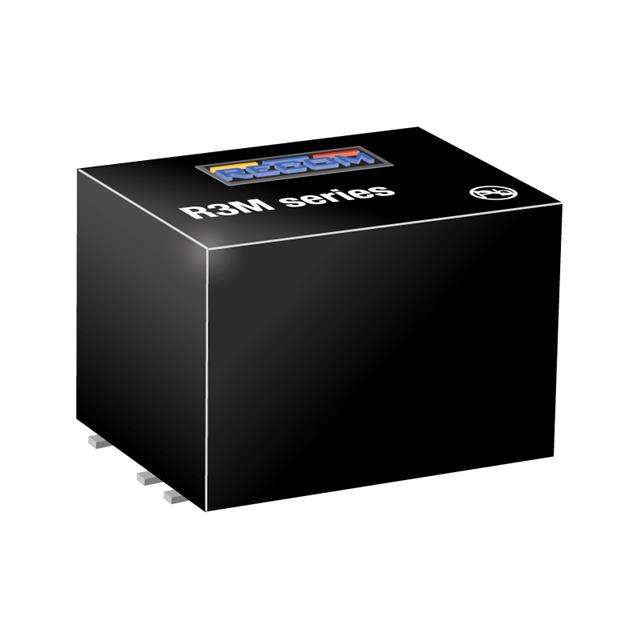

R3M-2415D/SMD
ActiveRECOM Power
ISOLATED SURFACE MOUNT DC/DC CONVERTER, SURFACE MOUNT DIP, 4:1, 3 W, 2 OUTPUT, 15 V
Deep-Dive with AI
Search across all available documentation for this part.
R3M-2415D/SMD
ActiveRECOM Power
ISOLATED SURFACE MOUNT DC/DC CONVERTER, SURFACE MOUNT DIP, 4:1, 3 W, 2 OUTPUT, 15 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R3M-2415D/SMD |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SMD Module, 6 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 13.2 mm |
| Size / Dimension [x] | 0.52 in |
| Size / Dimension [y] | 9.1 mm |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R3M Series
Isolated DC/DC Converters - SMD 3W 9-36Vin +/-15Vout +/-100mA
