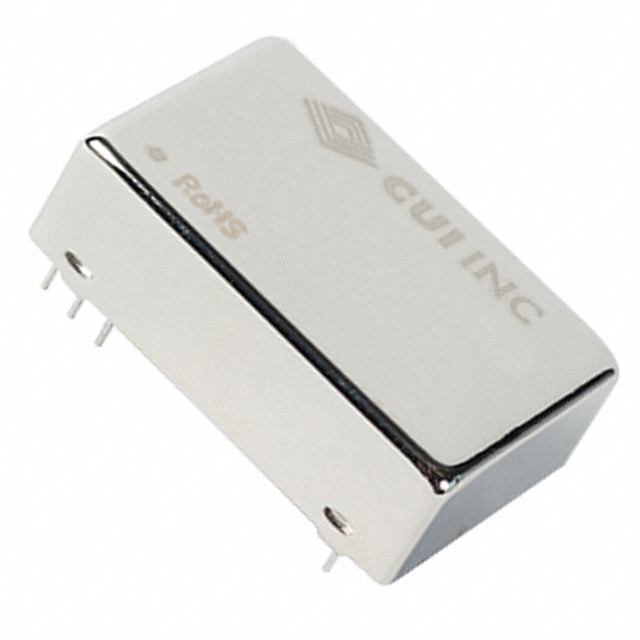

VAWQ12-Q48-S15

Obsolete

CUI Inc.

DC DC CONVERTER 15V 12W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 15V 12W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Applications	Type	Efficiency	Package / Case	Control Features	Power (Watts)	Mounting Type
CUI Inc. VAWQ12-Q48-S3R3	OVP Remote On/Off SCP UVLO	18 V	75 V	3.3 V	1	3.5 A	85 °C	-40 °C	1.5 kV	ITE (Commercial)	Isolated Module	85 %	24-DIP Module	Active High Enable	12 W	Through Hole
CUI Inc. VAWQ12-Q48-S5	OVP Remote On/Off SCP UVLO	18 V	75 V	5 V	1	2.4 A	85 °C	-40 °C	1.5 kV	ITE (Commercial)	Isolated Module	87 %	24-DIP Module	Active High Enable	12 W	Through Hole
CUI Inc. VAWQ12-Q48-S15	OVP Remote On/Off SCP UVLO	18 V	75 V	15 V	1	800 mA	85 °C	-40 °C	1.5 kV	ITE (Commercial)	Isolated Module	88 %	24-DIP Module	Active High Enable	12 W	Through Hole
CUI Inc. VAWQ12-Q24-S12	OVP Remote On/Off SCP UVLO	9 V	36 V	12 V	1	1 A	85 °C	-40 °C	1.5 kV	ITE (Commercial)	Isolated Module	86 %	24-DIP Module	Active High Enable	12 W	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 15V 800mA 18V - 75V Input
