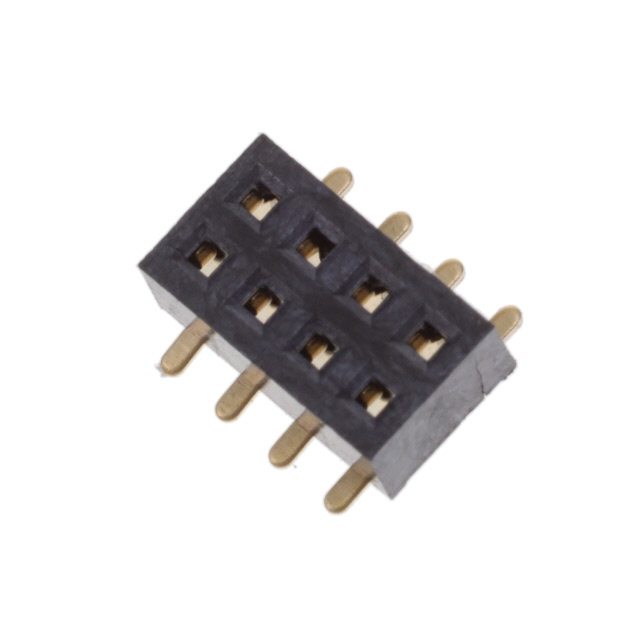

HRS-2C-08-G-SMT-P

Active

Adam Tech

RECEPTACLE STRIP 1.27MM VERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

HRS-2C-08-G-SMT-P

Active

Adam Tech

RECEPTACLE STRIP 1.27MM VERT

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRS-2C-08-G-SMT-P

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.085 "
Insulation Height	2.15 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder
Voltage Rating	300 VAC

HRS-2C Series

Part	Contact Finish - Post	Termination	Mounting Type	Insulation Material	Contact Shape	Contact Finish - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Color	Voltage Rating	Number of Positions Loaded	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Type	Fastening Type	Applications	Number of Positions	Insulation Height	Insulation Height	Features
Adam Tech HRS-2C-10-SG-SMT-P	Tin	Solder	Surface Mount	Thermoplastic	Square	Gold	2	0.05 in	1.27 mm	Black	250 VAC	All	Phosphor Bronze	-40 °C	105 ░C	0.05 in	1.27 mm	Receptacle	Flash	UL94 V-0	Female Socket	Push-Pull	General Purpose	10	0.085 "	2.15 mm	Board Guide Pick and Place
Adam Tech HRS-2C-18-SG-SMT-P	Tin	Solder	Surface Mount	Thermoplastic	Square	Gold	2	0.05 in	1.27 mm	Black	250 VAC	All	Phosphor Bronze	-40 °C	105 ░C	0.05 in	1.27 mm	Receptacle	Flash	UL94 V-0	Female Socket	Push-Pull	General Purpose	18	0.085 "	2.15 mm	Board Guide Pick and Place
Adam Tech HRS-2C-12-SG-SMT-P	Tin	Solder	Surface Mount	Thermoplastic	Square	Gold	2	0.05 in	1.27 mm	Black	250 VAC	All	Phosphor Bronze	-40 °C	105 ░C	0.05 in	1.27 mm	Receptacle	Flash	UL94 V-0	Female Socket	Push-Pull	General Purpose	12	0.085 "	2.15 mm	Board Guide Pick and Place
Adam Tech HRS-2C-04-SG-SMT-P	Tin	Solder	Surface Mount	Thermoplastic	Square	Gold	2	0.05 in	1.27 mm	Black	250 VAC	All	Phosphor Bronze	-40 °C	105 ░C	0.05 in	1.27 mm	Receptacle	Flash	UL94 V-0	Female Socket	Push-Pull	General Purpose	4	0.085 "	2.15 mm	Board Guide Pick and Place
Adam Tech HRS-2C-08-G-SMT-P	Gold	Solder	Surface Mount	Thermoplastic	Square	Gold	2	0.05 in	1.27 mm	Black	300 VAC	All	Phosphor Bronze	-40 °C	105 ░C	0.05 in	1.27 mm	Receptacle	Flash	UL94 V-0	Female Socket	Push-Pull	General Purpose	8	0.085 "	2.15 mm	Board Guide Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.11
		10	$ 1.61
