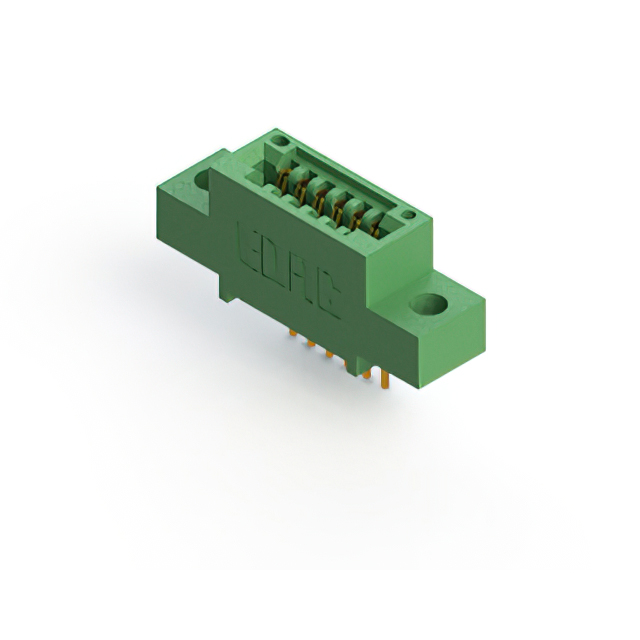

845-006-541-404
ActiveEDAC Inc.
CONN EDGE SINGLE FML 6POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-006-541-404
ActiveEDAC Inc.
CONN EDGE SINGLE FML 6POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-006-541-404 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
845-006 Series
...
| Part | Contact Type | Mounting Type | Number of Positions | Read Out | Termination | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Number of Positions/Bay/Row [custom] | Number of Rows | Pitch [x] | Pitch [x] | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Card Type | Contact Material | Material - Insulation | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Through Hole Right Angle | 6 | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 3.25 mm | 0.128 in | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | |||
EDAC Inc. | Cantilever | Through Hole Right Angle | 6 | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 3.25 mm | 0.128 in | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | Side Mount Opening Unthreaded | ||
EDAC Inc. | Cantilever | Through Hole | 6 | Single | Wire Wrap | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | ||
EDAC Inc. | Cantilever | Through Hole | 6 | Single | Wire Wrap | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | Cantilever | Through Hole Right Angle | 6 | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | ||
EDAC Inc. | Cantilever | Through Hole | 6 | Single | Wire Wrap | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Cantilever | Through Hole | 6 | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Cantilever | Through Hole | 6 | Single | Wire Wrap | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | Cantilever | Through Hole | 6 | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | ||
EDAC Inc. | Cantilever | Through Hole | 6 | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 6 | 1 | 2.54 mm | 0.1 in | Female | 10 Áin | 0.25 Ám | 1 | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | Green | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-006 Series
6 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
