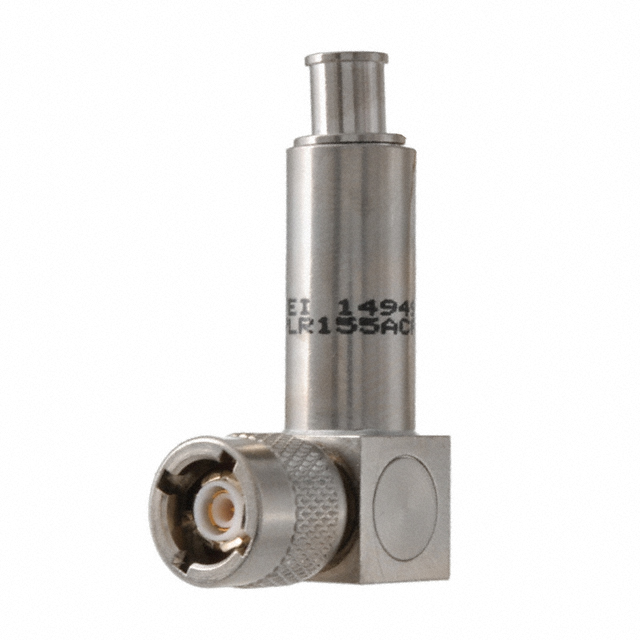

PLR155ACFL-201

Active

Cinch Connectivity Solutions Trompeter

CONN TRS PLUG R/A CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRS PLUG R/A CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PLR155ACFL-201

Body Finish	Nickel
Body Material	Brass
Cable Group	M17/176-00002
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TRS, Twinaxial/Triaxial
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Crimp
Fastening Type	Bayonet Lock
Features	Four Lug
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	400 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Frequency - Max [Max]	Connector Type	Mounting Type	Includes	Body Material	Impedance	Center Contact Material	Cable Group	Features	Fastening Type	Mating Cycles	Number of Ports	Housing Color	Shield Termination	Body Finish	Voltage Rating	Connector Style	Contact Termination
Cinch Connectivity Solutions Trompeter PLR155ACFL-201	-65 ░C	200 °C	Gold	500 MHz	Plug Male Pin (Concentric)	Free Hanging (In-Line) Right Angle	1 Connector 1 Heat Shrink 1 Strain Relief	Brass	Non-Constant	Beryllium Copper	M17/176-00002	Four Lug	Bayonet Lock	500	1	Silver	Crimp	Nickel	400 V	TRS Twinaxial/Triaxial	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRS, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line), Right Angle Crimp
