AZEV200-2AE1B-6D
ActiveAmerican Zettler

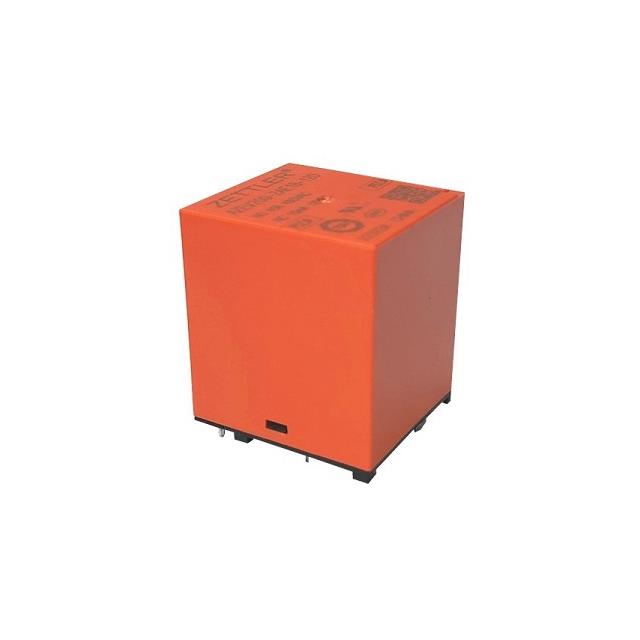

RELAY EV CHARGING 3PST 40A 6V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZEV200-2AE1B-6D
ActiveAmerican Zettler
RELAY EV CHARGING 3PST 40A 6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZEV200-2AE1B-6D |
|---|---|
| Approval Agency | CQC, TUV, cURus |
| Coil Current | 432 mA |
| Coil Insulation | Class F |
| Coil Resistance | 13.9 Ohms |
| Coil Type | Non Latching |
| Contact Form | 3PST-2NO/1NC (2 Form A, 1 Form B) |
| Contact Material | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au) |
| Contact Rating (Current) | 40 A |
| Load - Max Switching [Max] | 19200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 4.5 VDC |
| Must Release Voltage | 0.3 VDC |
| Operate Time | 30 ms |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Relay Type | EV Charging |
| Release Time | 10 ms |
| Switching Voltage | 480 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.54 | |
| 10 | $ 12.04 | |||
| 30 | $ 11.44 | |||
| 50 | $ 10.84 | |||
| 100 | $ 10.23 | |||
| 250 | $ 9.33 | |||
| 500 | $ 8.73 | |||
| 1000 | $ 8.28 | |||
Description
General part information
AZEV200 Series
EV Charging Relay 3PST-2NO/1NC (2 Form A, 1 Form B) 6VDC Coil Through Hole
