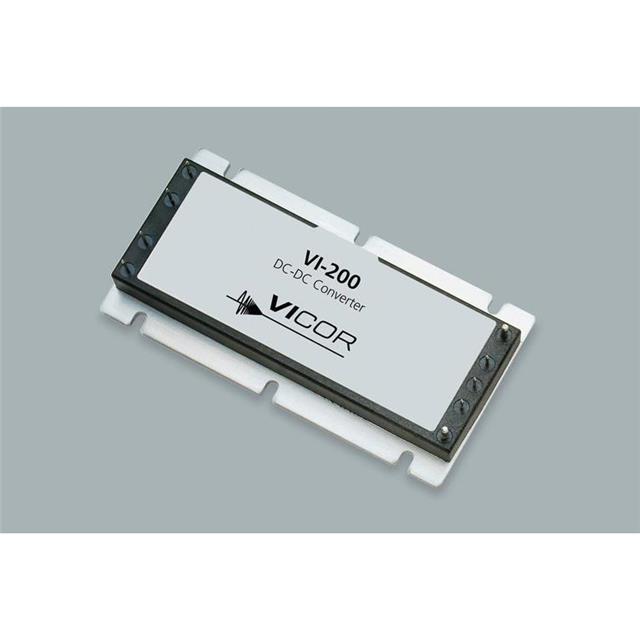

VI-B6L-MU-B1

Active

Vicor Corporation

DC DC CONVERTER 28V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VI-B6L-MU-B1

Active

Vicor Corporation

DC DC CONVERTER 28V 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VI-B6L-MU-B1

Applications	ITE (Commercial)
Current - Output (Max) [Max]	7.14 A
Efficiency	90 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	Full Brick
Power (Watts)	200 W
Size / Dimension [x]	116.8 mm
Size / Dimension [x]	4.6 "
Size / Dimension [y]	61 mm
Size / Dimension [y]	2.4 "
Size / Dimension [z]	27.1 mm
Size / Dimension [z]	1.07 "
Type	Isolated Module
Voltage - Input (Max) [Max]	400 V
Voltage - Input (Min) [Min]	200 V
Voltage - Isolation	3000 V
Voltage - Output 1	28 V

VI-B6L Series

Part	Efficiency	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Features	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Mounting Type	Type	Current - Output (Max) [Max]	Applications
Vicor Corporation VI-B6L-MW	90 %	Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	85 °C	-55 °C	1	400 V	OCP OTP OVP SCP	200 V	100 W	28 V	3000 V	Through Hole	Isolated Module	3.57 A	ITE (Commercial)
Vicor Corporation VI-B6L-04
Vicor Corporation VI-B6L-CU	90 %	Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	85 °C	-25 °C	1	400 V	OCP OTP OVP SCP	200 V	200 W	28 V	3000 V	Through Hole	Isolated Module	7.14 A	ITE (Commercial)
Vicor Corporation VI-B6L-EU	88 %	Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	85 °C	-10 °C	1	400 V	OCP OTP OVP SCP	200 V	200 W	28 V	3000 V	Through Hole	Isolated Module	7.14 A	ITE (Commercial)
Vicor Corporation VI-B6L-MU-B1	90 %	Full Brick	1.07 "	4.6 "	116.8 mm	27.1 mm	2.4 "	61 mm	85 °C	-55 °C	1	400 V	OCP OTP OVP SCP	200 V	200 W	28 V	3000 V	Through Hole	Isolated Module	7.14 A	ITE (Commercial)
Vicor Corporation VI-B6L-01
Vicor Corporation VI-B6L-IV	90 %	Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	85 °C	-40 °C	1	400 V	OCP OTP OVP SCP	200 V	150 W	28 V	3000 V	Through Hole	Isolated Module	5.36 A	ITE (Commercial)
Vicor Corporation VI-B6L-IU	90 %	Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	85 °C	-40 °C	1	400 V	OCP OTP OVP SCP	200 V	200 W	28 V	3000 V	Through Hole	Isolated Module	7.14 A	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1183.94
		10	$ 940.44

Description

General part information

VI-B6L Series

Isolated Module DC DC Converter 1 Output 28V 7.14A 200V - 400V Input

Documents

Technical documentation and resources
