R694252507

Active

Radiall USA, Inc.

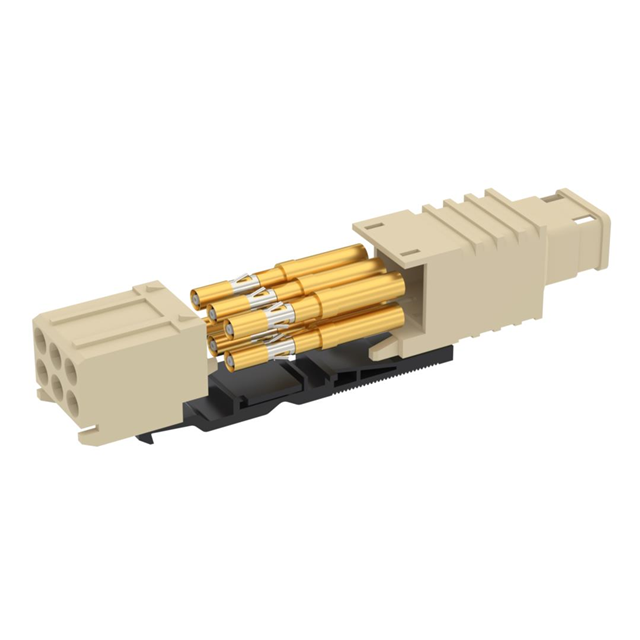

COAXIPACK 2 / STRAIGHT FEMALE MO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R694252507

Body Finish	Gold
Body Material	Brass
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Shield Termination	Crimp
Voltage Rating	500 V

R69425 Series

Part	Mating Cycles	Impedance	Connector Type	Frequency - Max [Max]	Contact Termination	Connector Style	Center Contact Plating	Fastening Type	Insertion Loss	Housing Color	Body Material	Body Finish	Dielectric Material	Shield Termination	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Voltage Rating	Mounting Type	Cable Group
Radiall USA, Inc. R694252107W	500	50 Ohms	Female Socket Jack	6000 MHz	Solder	MCC2	Gold	Push-Pull	0.2 dB	Silver	Brass	Nickel	Polyetheretherketone (PEEK) Polyetherimide (PEI)	Solder	6	125 °C	-25 °C	Beryllium Copper	500 V	Through Hole Right Angle
Radiall USA, Inc. R694252537	500	50 Ohms	Female Socket Jack	6000 MHz	Crimp	MCC2	Gold	Push-Pull	0.2 dB	Gold	Brass	Gold	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Crimp	6	125 °C	-25 °C	Beryllium Copper	500 V	Free Hanging (In-Line)	316 RG-188
Radiall USA, Inc. R694252507	500	50 Ohms	Female Socket Jack	6000 MHz	Crimp		Gold	Push-Pull		Gold	Brass	Gold	Polytetrafluoroethylene (PTFE)	Crimp	6	125 °C	-25 °C	Beryllium Copper	500 V	Free Hanging (In-Line)	RG-178
Radiall USA, Inc. R694252102	500	50 Ohms	Female Socket Jack	6000 MHz	Solder	MCC2	Gold	Push-Pull	0.2 dB	Silver	Brass	Nickel	Polyetheretherketone (PEEK) Polyetherimide (PEI)	Solder	2	125 °C	-25 °C	Beryllium Copper	500 V	Through Hole Right Angle
Radiall USA, Inc. R694252557	500	75 Ohms	Female Socket Jack	6000 MHz	Crimp	MCC2	Gold	Push-Pull	0.2 dB	Gold	Brass	Gold	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Crimp	6	125 °C	-25 °C	Beryllium Copper	500 V	Free Hanging (In-Line)
Radiall USA, Inc. R694252106	500	50 Ohms	Female Socket Jack	6000 MHz	Solder	MCC2	Gold	Push-Pull	0.2 dB	Silver	Brass	Nickel	Polyetheretherketone (PEEK) Polyetherimide (PEI)	Solder	4	125 °C	-25 °C	Beryllium Copper	500 V	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 202.56

Description

General part information

R69425 Series

Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
