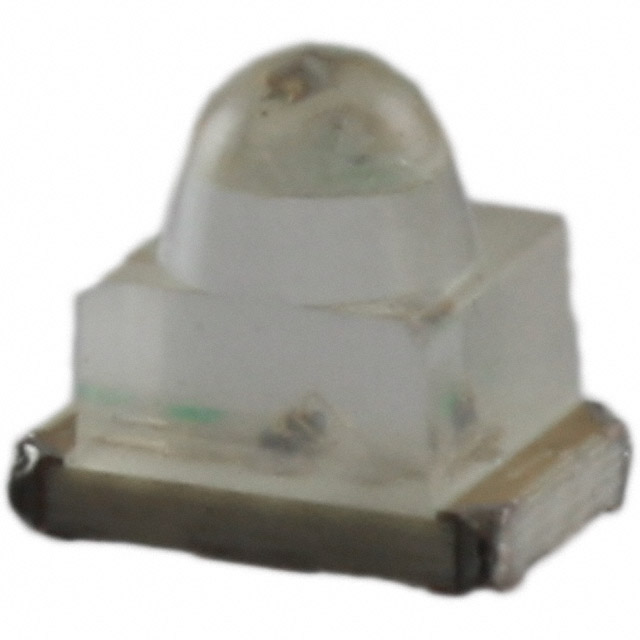

APBDA3020CGKSYKC-GX

Active

Kingbright

LED GRN/YLW CLEAR SMD R/A

Search across all available documentation for this part.

Active

Kingbright

LED GRN/YLW CLEAR SMD R/A

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Mounting Type	Lens Style	Supplier Device Package	Height (Max) [Max] [z]	Wavelength - Peak	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Lens Color	Color	Current - Test	Lens Size [diameter]	Viewing Angle	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Configuration	Voltage - Forward (Vf) (Typ)	Millicandela Rating
Kingbright APBDA3020SURKZGKC-GX	Clear	Surface Mount Right Angle	Round with Domed Top	3-SMD	2.2 mm	574 nm 645 nm	300mcd Green 900mcd Red	3 mm	2.8 mm	570 nm 630 nm	Colorless	Green Red	20 mA 20 mA	1.7 mm	15 °	3-SMD No Lead	2.1 V	1.95 V
Kingbright APBDA3020SURKCGKC-GX	Clear	Surface Mount Right Angle	Round with Domed Top	SMD	2 mm	574 nm 645 nm		3 mm	2.8 mm	570 nm 630 nm	Colorless	Green Red	20 mA 20 mA	1.9 mm	15 °	3-SMD No Lead	2.1 V	1.95 V	300 mcd	300 mcd	Common Anode
Kingbright APBDA3020CGKSYKC-GX	Clear	Surface Mount Right Angle	Round with Domed Top	SMD	2 mm	574 nm 590 nm		3 mm	2.8 mm	570 nm 590 nm	Colorless	Green Yellow	20 mA 20 mA	1.9 mm	15 °	3-SMD No Lead					Common Anode	2 V 2.1 V	280 mcd 700 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Yellow 570nm Green, 590nm Yellow LED Indication - Discrete 2.1V Green, 2V Yellow 3-SMD, No Lead
