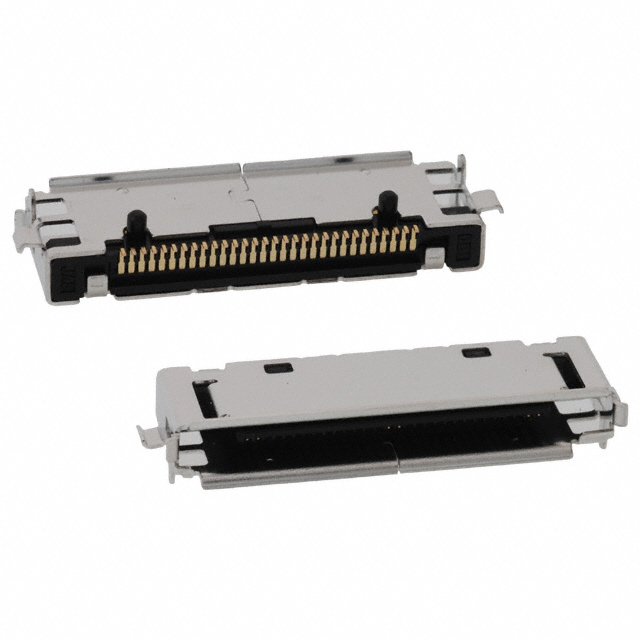

DD1R030HA1R1300
ActiveJAE Electronics
TELECOM AND DATACOM CONNECTOR, 30 CONTACT(S), FEMALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL, LOCKING, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DD1R030HA1R1300
ActiveJAE Electronics
TELECOM AND DATACOM CONNECTOR, 30 CONTACT(S), FEMALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL, LOCKING, RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DD1R030HA1R1300 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | Multi-Purpose |
| Contact Finish | Gold |
| Features | Board Guide |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 30 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.58 | |
| 10 | $ 4.16 | |||
| 25 | $ 3.94 | |||
| 50 | $ 3.85 | |||
| 100 | $ 3.67 | |||
| 250 | $ 3.21 | |||
| 500 | $ 3.12 | |||
| Tape & Reel (TR) | 1300 | $ 2.66 | ||
| 2600 | $ 2.47 | |||
Description
General part information
DD1R030H Series
30 Position Multi-Purpose Receptacle Connector Solder Surface Mount, Right Angle
