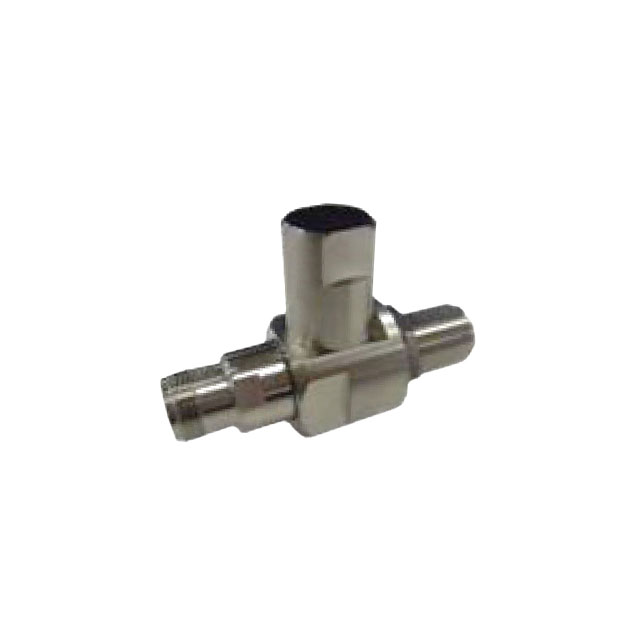

CP-N-JJS-1

Active

Hirose Electric USA, Inc.

CONN ADAPT JACK-JACK N 50 OHM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN ADAPT JACK-JACK N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	CP-N-JJS-1

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2.2 GHz
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mounting Feature	Bulkhead
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	T-Shape

Part	Adapter Type	Body Finish	Mounting Feature	Impedance	Center Contact Plating	Adapter Series	Dielectric Material	Frequency - Max [Max]	Convert From (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Includes	Body Material	Conversion Type	Center Contact Material	Style	Convert To (Adapter End)
Hirose Electric USA, Inc. CP-N-JJS-1	Jack to Jack	Nickel	Bulkhead	50 Ohms	Gold	N to N	Polytetrafluoroethylene (PTFE)	2.2 GHz	Female Socket N Jack	85 °C	-40 °C	Female to Female	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Brass	Same Series	Beryllium Copper	T-Shape	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 455.36

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
