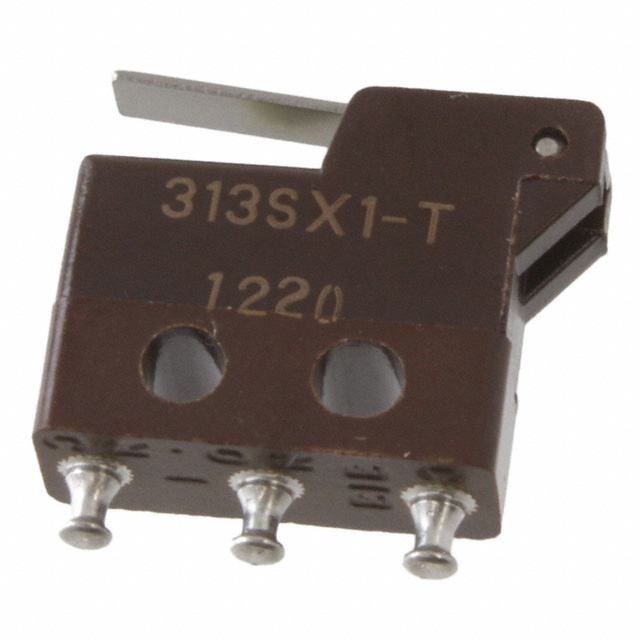

313SX1-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
313SX1-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 313SX1-T |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 50 gf |
| Operating Position | 0.332 in |
| Operating Position | 8.43 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 0.014 in |
| Overtravel | 0.35 mm |
| Pretravel | 1.65 mm |
| Pretravel | 0.065 in |
| Release Force | 9.177 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Turret |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.55 | |
Description
General part information
313SX1 Series
Switch SPDT Chassis Mount
