BU-1150-C-12-0

Active

Mueller Electric Co

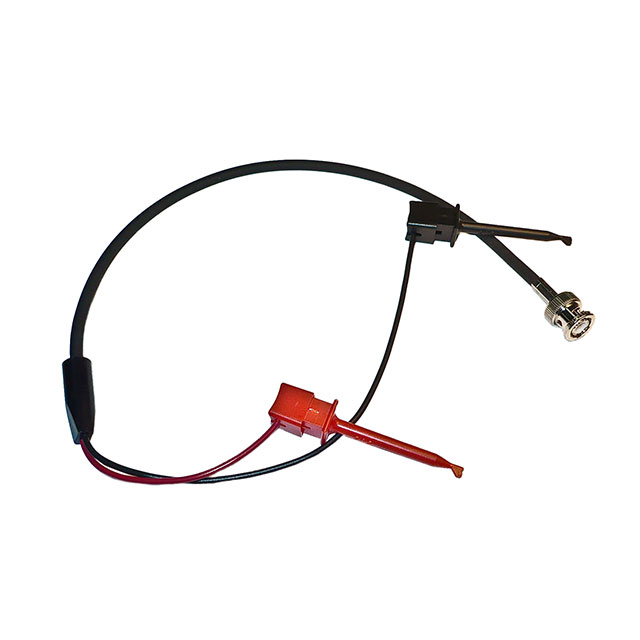

BLACK MINI-PLUNGER TO BNC MALE RG58, 12" RG58C/U COAX

Search across all available documentation for this part.

Active

Mueller Electric Co

BLACK MINI-PLUNGER TO BNC MALE RG58, 12" RG58C/U COAX

Technical Specifications

Parameters and characteristics for this part

Specification	BU-1150-C-12-0

1st Connector	BNC, Male Plug
2nd Connector	Mini Hook (2)
Cable Length	12 in
Cable Length	304.8 mm
Cable Type	RG-58C/U
Color	Black Cable, Black and Red Leads
Configuration	Hook, BNC to Grabber
Material - Insulation	Nylon
Voltage - Rated	300 VAC

Part	Cable Type	Configuration	Cable Length	Cable Length	Color	2nd Connector	Voltage - Rated	Material - Insulation	1st Connector
Mueller Electric Co BU-1150-C-36-0	RG-58C/U	BNC to Grabber Hook	36 in	914.4 mm	Black Cable Black and Red Leads	Mini Hook (2)	300 VAC	Nylon	BNC Male Plug
Mueller Electric Co BU-1150-C-12-0	RG-58C/U	BNC to Grabber Hook	12 in	304.8 mm	Black Cable Black and Red Leads	Mini Hook (2)	300 VAC	Nylon	BNC Male Plug
Mueller Electric Co BU-1150-C-48-0	RG-58C/U	BNC to Grabber Hook	48 in	1219.2 mm	Black Cable Black and Red Leads	Mini Hook (2)	300 VAC	Nylon	BNC Male Plug
Mueller Electric Co BU-1150-C-60-0	RG-58C/U	BNC to Grabber Hook	5 ft	1524 mm	Black Cable Black and Red Leads	Mini Hook (2)	300 VAC	Nylon	BNC Male Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) BNC, Male Plug To Mini Hook (2) Test Lead 300VAC

Technical documentation and resources
