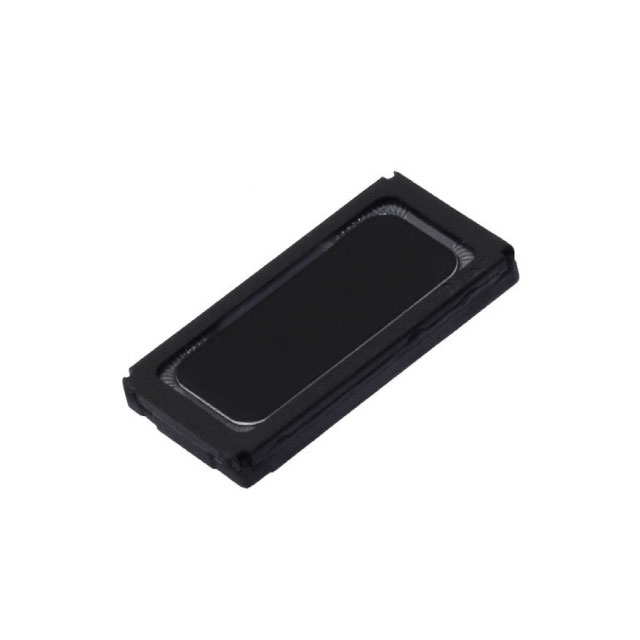

CMS-20103-078SP
ActiveCUI Devices
SPEAKERS NEODYMIUM IRON BORON 550HZ 1W 90DBA 8OHM RECTANGULAR SOLDER PAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMS-20103-078SP
ActiveCUI Devices
SPEAKERS NEODYMIUM IRON BORON 550HZ 1W 90DBA 8OHM RECTANGULAR SOLDER PAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-20103-078SP |
|---|---|
| Distortion Rating | 10 % |
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 700 mW, 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 550 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 440 Hz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Impedance | 8 Ohms |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 700 mW |
| Shape | Rectangular |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [y] | 0.394 in |
| Size / Dimension [y] | 10 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.26 | |
| 10 | $ 2.69 | |||
| 25 | $ 2.62 | |||
Description
General part information
CMS-20103 Series
8 Ohms General Purpose Speaker 700 mW 440 Hz ~ 20 kHz Top Rectangular
