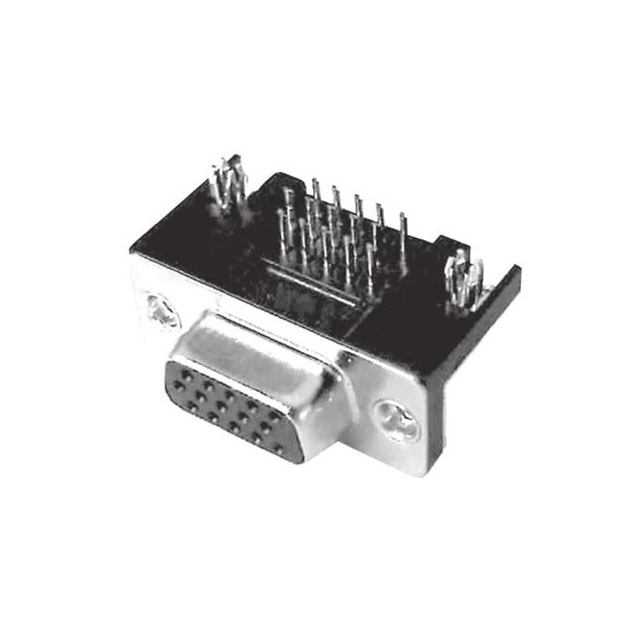

L777HDE15PD1CH4F
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD PLUG 15P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L777HDE15PD1CH4F
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD PLUG 15P R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L777HDE15PD1CH4F |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Tabs, Board Lock, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L777HDE15 Series
| Part | Flange Feature | Features | Number of Positions | Termination | Contact Finish | Contact Type | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Contact Material | Connector Type | Backset Spacing | Backset Spacing | Mounting Type | Number of Rows | Current Rating (Amps) | Contact Form | Connector Style | Dielectric Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Board Side (M3) | Board Lock Grounding Indents | 15 | Solder | Gold | Signal | 250 VDC | -55 °C | 125 °C | DE E | 1 | High Density | 16 µin | 0.41 µm | UL94 V-0 | Brass | Male Pins Plug | 8.89 mm | 0.35 in | Through Hole Right Angle | 3 | 3 A | Stamped | D-Sub High Density | Thermoplastic Glass Filled | |
Amphenol ICC (Commercial Products) | Female Screwlock (M3) Mating Side | Grounding Indents | 15 | Gold | Signal | 250 VDC | -55 °C | 155 °C | DE E | 1 | High Density | 16 µin | 0.41 µm | UL94 V-0 | Brass | Male Pins Plug | Free Hanging (In-Line) | 3 | 3 A | Stamped | D-Sub High Density | Thermoplastic Glass Filled | ||||
Amphenol ICC (Commercial Products) | Female Screwlock (4-40) Mating Side | Grounding Indents | 15 | Gold | Signal | 250 VDC | -55 °C | 155 °C | DE E | 1 | High Density | 16 µin | 0.41 µm | UL94 V-0 | Brass | Male Pins Plug | Free Hanging (In-Line) | 3 | 3 A | Stamped | D-Sub High Density | Thermoplastic Glass Filled | ||||
Amphenol ICC (Commercial Products) | Female Screwlock (4-40) Mating Side | Board Lock Grounding Indents Grounding Tabs | 15 | Solder | Gold | Signal | 250 VDC | -55 °C | 105 ░C | DE E | 1 | High Density | 16 µin | 0.41 µm | UL94 V-0 | Brass | Male Pins Plug | 8.89 mm | 0.35 in | Through Hole Right Angle | 3 | 3 A | Stamped | D-Sub High Density | Thermoplastic Glass Filled | Black |
Amphenol ICC (Commercial Products) | Housing/Shell (Unthreaded) | Grounding Indents | 15 | Solder | Gold | Signal | 250 VDC | -55 °C | 105 ░C | DE E | 1 | High Density | 16 µin | 0.41 µm | UL94 V-0 | Brass | Male Pins Plug | Through Hole | 3 | 3 A | Stamped | D-Sub High Density | Thermoplastic Glass Filled | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1080 | $ 2.00 | |
Description
General part information
L777HDE15 Series
15 Position D-Sub, High Density Plug, Male Pins Connector
