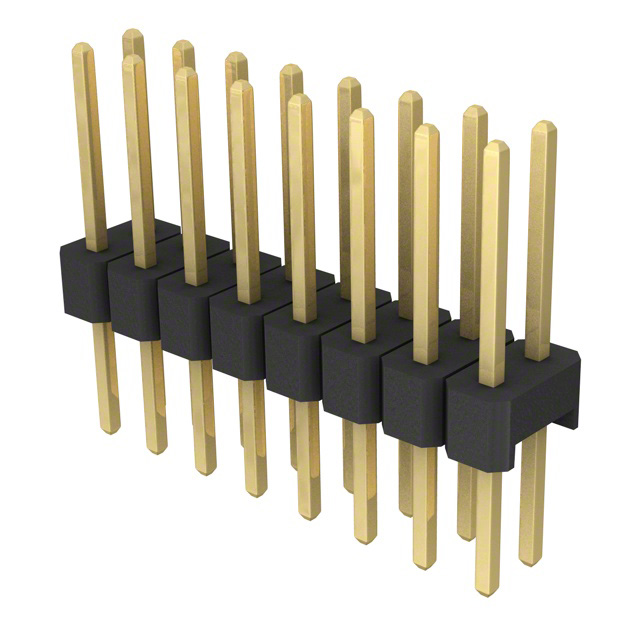

PRPC008DFBN-RC

Active

Sullins Connector Solutions

3A STRAIGHT GOLD 16P -40℃~+105℃ 2.54MM DOUBLE ROW BLACK BRASS 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

PRPC008DFBN-RC

Active

Sullins Connector Solutions

3A STRAIGHT GOLD 16P -40℃~+105℃ 2.54MM DOUBLE ROW BLACK BRASS 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC008DFBN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	16.17 mm
Overall Contact Length	0.637 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC008 Series

Part	Contact Shape	Number of Rows	Fastening Type	Contact Finish - Post	Contact Material	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Style	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Finish Thickness - Mating	Shrouding	Number of Positions	Contact Finish Thickness - Post	Mounting Type	Termination	Insulation Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Number of Positions
Sullins Connector Solutions PRPC008SADN-RC	Square	1	Push-Pull	Gold	Brass	UL94 V-0	Breakaway Header	0.1 in	2.54 mm	19.01 mm	0.748 in	Board to Board Cable	3 A	10.67 mm	0.42 in	Gold	-40 °C	105 ░C	0.23 in	5.84 mm	All	Black	0.098 in	2.5 mm	Male Pin	Flash	Unshrouded	8	Flash	Through Hole	Solder	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PRPC008SBBN-M71RC	Square	1	Push-Pull	Gold	Brass	UL94 V-0	Breakaway Header	0.1 in	2.54 mm			Board to Board Cable	3 A			Gold	-40 °C	105 ░C	0.23 in	5.84 mm	All	Black	0.098 in	2.5 mm	Male Pin	Flash	Unshrouded	8	Flash	Through Hole Right Angle	Solder	Polybutylene Terephthalate (PBT)	0.22 in	5.58 mm
Sullins Connector Solutions PRPC008DGAN-M71RC	Square	2	Push-Pull	Gold	Brass	UL94 V-0	Breakaway Header	0.1 in	2.54 mm			Board to Board Cable	3 A	3.05 mm	0.12 in	Gold	-40 °C	105 ░C	0.318 "		All	Black			Male Pin	Flash	Unshrouded		Flash	Through Hole Right Angle	Solder	Polybutylene Terephthalate (PBT)			0.197 in	5 mm	2.54 mm	0.1 in	8.08 mm	16
Sullins Connector Solutions PRPC008SAAN-RC	Square	1	Push-Pull	Gold	Brass	UL94 V-0	Breakaway Header	0.1 in	2.54 mm	11.39 mm	0.448 in	Board to Board Cable	3 A	3.05 mm	0.12 in	Gold	-40 °C	105 ░C	0.23 in	5.84 mm	All	Black	0.098 in	2.5 mm	Male Pin	Flash	Unshrouded	8	Flash	Through Hole	Solder	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PRPC008SACN-RC	Square	1	Push-Pull	Gold	Brass	UL94 V-0	Breakaway Header	0.1 in	2.54 mm	16.47 mm	0.648 in	Board to Board Cable	3 A	8.13 mm	0.32 in	Gold	-40 °C	105 ░C	0.23 in	5.84 mm	All	Black	0.098 in	2.5 mm	Male Pin	Flash	Unshrouded	8	Flash	Through Hole	Solder	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PRPC008DFBN-RC	Square	2	Push-Pull	Gold	Brass	UL94 V-0	Breakaway Header	0.1 in	2.54 mm	16.17 mm	0.637 in	Board to Board Cable	3 A			Gold	-40 °C	105 ░C	0.318 "		All	Black	0.098 in	2.5 mm	Male Pin	Flash	Unshrouded		Flash	Through Hole	Solder	Polybutylene Terephthalate (PBT)	0.22 in	5.58 mm			2.54 mm	0.1 in	8.08 mm	16
Sullins Connector Solutions PRPC008SGAN-M71RC	Square	1	Push-Pull	Gold	Brass	UL94 V-0	Breakaway Header	0.1 in	2.54 mm			Board to Board Cable	3 A	3.05 mm	0.12 in	Gold	-40 °C	105 ░C	0.318 "		All	Black	0.098 in	2.5 mm	Male Pin	Flash	Unshrouded	8	Flash	Through Hole Right Angle	Solder	Polybutylene Terephthalate (PBT)							8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.85
		10	$ 0.65
		100	$ 0.49
		500	$ 0.41
		1000	$ 0.38
		5000	$ 0.33
LCSC	Piece	1	$ 0.60
		200	$ 0.24
		500	$ 0.23
		1000	$ 0.23

Description

General part information

PRPC008 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
