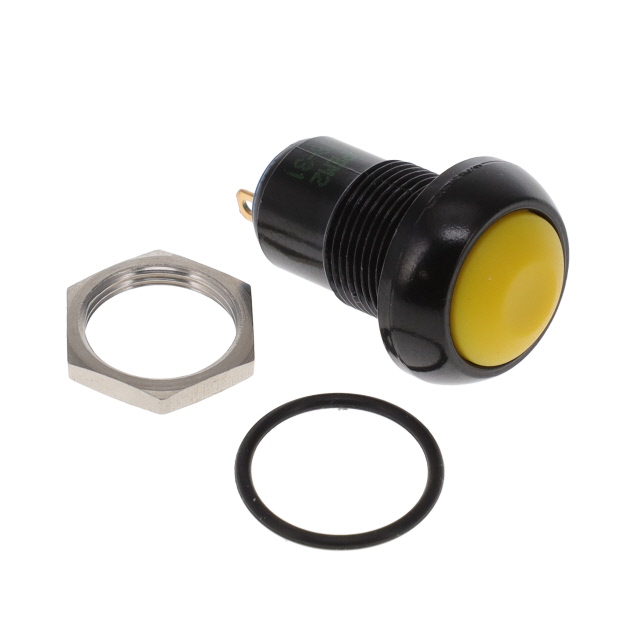

IPR1SAD5

Active

APEM

IP67 SEALED PUSHBUTTON SWITCH

Search across all available documentation for this part.

Active

APEM

IP67 SEALED PUSHBUTTON SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	IPR1SAD5

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Yellow
Current Rating (Amps)	4 A, 2 A
Electrical Life	200000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Type	Current Rating (Amps)	Switch Function	Mounting Type	Color - Actuator/Cap	Voltage Rating - DC	Actuator Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Termination Style	Circuit	Actuator Marking	Features	Electrical Life
APEM IPR1SAD2	85 °C	-40 °C	125 V	Standard	2 A 4 A	Off-On	Panel Mount Front	Black	12 V	Button Round	IP67 - Dust Tight Waterproof	13.6 mm	Solder Lug	SPST	No Marking	Epoxy Sealed Terminals	200000 Cycles
APEM IPR1SAD2104	85 °C	-40 °C	125 V	Standard	2 A 4 A	Off-On	Panel Mount Front	Black	12 V	Button Round	IP67 - Dust Tight Waterproof	13.6 mm	Solder Lug	SPST	No Marking	Epoxy Sealed Terminals	200000 Cycles
APEM IPR1SAD5	85 °C	-40 °C	125 V	Standard	2 A 4 A	Off-On	Panel Mount Front	Yellow	12 V	Button Round	IP67 - Dust Tight Waterproof	13.6 mm	Solder Lug	SPST	No Marking	Epoxy Sealed Terminals	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Standard Panel Mount, Front
