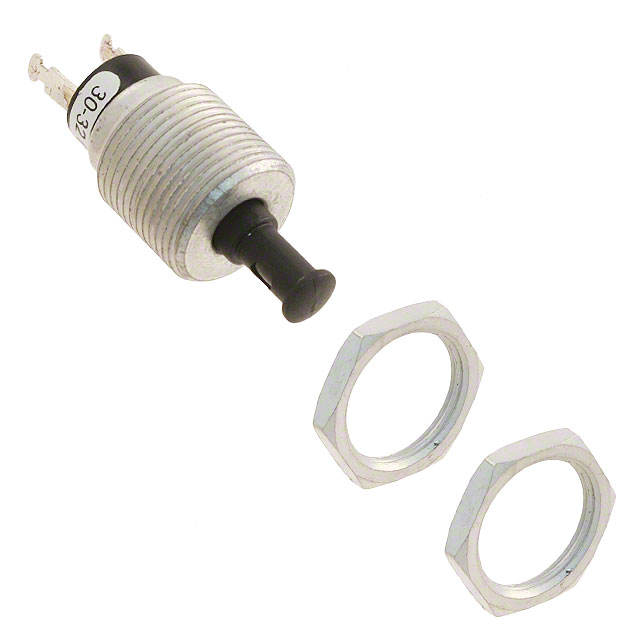

30-32 BLK

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 1A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 1A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	30-32 BLK

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	1 A
Electrical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.3 mm
Switch Function	On-Off
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	115 V

Part	Electrical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Features	Panel Cutout Dimensions [diameter]	Circuit	Mounting Type	Current Rating (Amps)	Switch Function	Actuator Marking	Color - Actuator/Cap	Type	Voltage Rating - AC
Grayhill Inc. 30-32 RED-EW	100000 Cycles	Wire Leads	85 °C	-40 °C	Round Plunger	Epoxy Sealed Terminals	12.3 mm	SPST-NC	Panel Mount Rear	1 A	On-Off	No Marking	Red	Standard	115 V
Grayhill Inc. 30-32 BLK	100000 Cycles	Solder Lug	85 °C	-40 °C	Round Plunger		12.3 mm	SPST-NC	Panel Mount Rear	1 A	On-Off	No Marking	Black	Standard	115 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 22.37

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
