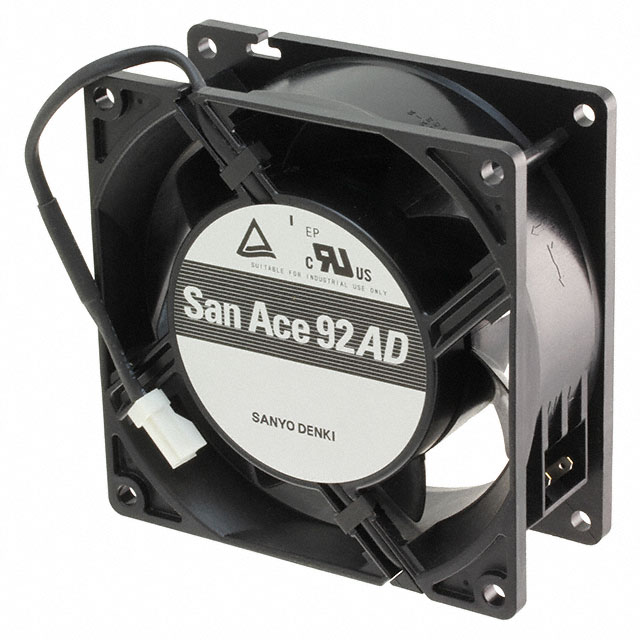

9AD0901M1H

Active

Sanyo Denki America Inc.

FAN 92X38MM 90/264VAC LSS

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN 92X38MM 90/264VAC LSS

Technical Specifications

Parameters and characteristics for this part

Specification	9AD0901M1H

Air Flow	1.17 m³/min
Air Flow	41.7 CFM
Approval Agency	CSA, TUV, PSE, UL, CE
Bearing Type	Ball
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	33 dB(A)
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	3 W
RPM	3100 RPM
Static Pressure	0.22 in H2O
Static Pressure	54.8 Pa
Termination	2 Position Rectangular Connector
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Voltage Range [Max]	240 VAC
Voltage Range [Min]	90 VAC
Weight	0.551 lb
Weight	249.93 g
Width [y]	38 mm

Part	Material - Blade	Air Flow	Air Flow	Features	Fan Type	Material - Frame	Approval Agency	Noise	Width [y]	Termination	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Weight	Weight	Current Rating (Amps)	RPM	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Bearing Type	Voltage - Rated [Min]	Voltage - Rated [Max]
Sanyo Denki America Inc. 9AD0901M1H	Plastic	1.17 m³/min	41.7 CFM	Speed Sensor (Tach)	Tubeaxial	Plastic	CE CSA PSE TUV UL	33 dB(A)	38 mm	2 Position Rectangular Connector	0.22 in H2O	54.8 Pa	-20 C	-20 °C	75 ░C	75 °C	0.551 lb	249.93 g	60 mA	3100 RPM	90 VAC	240 VAC	3 W	Ball	100 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	28	$ 53.09

General part information

Fan Tubeaxial 100 ~ 240VAC Square - 92mm L x 92mm H Ball 41.7 CFM (1.17mł/min) 2 Position Rectangular Connector
