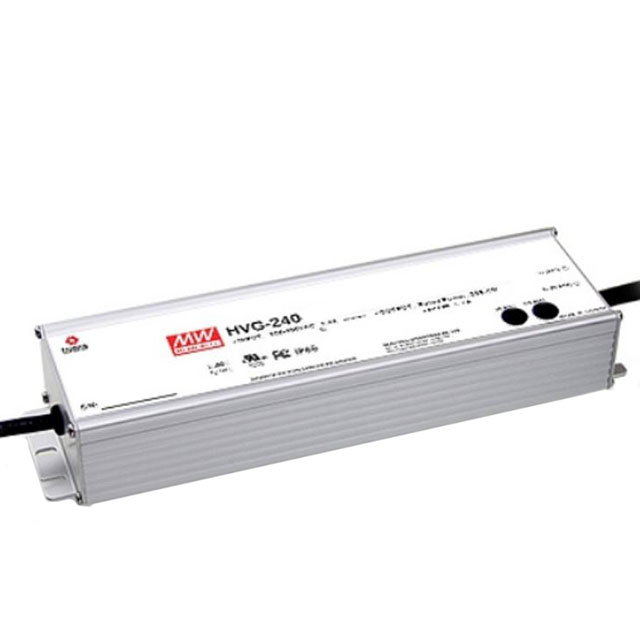

HVG-240-42AB

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HVG-240-42AB

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HVG-240-42AB

Approval Agency	FCC, cURus, EAC
Current - Output (Max) [Max]	10 A
Dimming	Analog, PWM
Efficiency	92.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	235 W
Ratings	IP65
Size / Dimension [x]	9.06 in
Size / Dimension [x]	230.2 mm
Size / Dimension [y]	2.68 "
Size / Dimension [y]	68 mm
Size / Dimension [z]	1.53 in
Size / Dimension [z]	38.8 mm
Standard Number	UL 8750
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max)	528 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output	24 V

HVG-240 Series

Part	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Topology	Type	Voltage - Input (Min) [Min]	Voltage - Input (Max)	Dimming	Voltage - Isolation	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max)	Mounting Type	Ratings	Features	Current - Output (Max) [Max]	Approval Agency	Voltage - Output	Standard Number
MEAN WELL USA Inc. HVG-240-42B	21 V	42 V	235 W	AC DC Converter	Constant Current Voltage	180 VAC	528 VAC	Analog PWM	3750 V	Wire Leads	90 °C	-40 °C	1	93 %	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm	5.7 A	Chassis Mount	IP67	OCP OTP OVP SCP
MEAN WELL USA Inc. HVG-240-48A	44.8 V	51.2 V	240 W	AC DC Converter	Constant Current Voltage	180 VAC	528 VAC		3750 V	Wire Leads	90 °C	-40 °C	1	92.5 %	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm		Chassis Mount	IP65	OCP OTP OVP SCP	5 A
MEAN WELL USA Inc. HVG-240-54AB			243 W	AC DC Converter	Constant Current Voltage	180 VAC	528 VAC	Analog PWM	3750 V	Wire Leads	90 °C	-40 °C	1	93 %	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm		Chassis Mount	IP65	OCP OTP OVP SCP	4.5 A	cURus EAC FCC	54 V
MEAN WELL USA Inc. HVG-240-36B	18 V	36 V	241 W	AC DC Converter	Constant Current Voltage	180 VAC	528 VAC	Analog PWM	3750 V	Wire Leads	90 °C	-40 °C	1	93 %	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm		Chassis Mount	IP67	OCP OTP OVP SCP	6.7 A
MEAN WELL USA Inc. HVG-240-24B	12 V	24 V	240 W	AC DC Converter	Constant Current Voltage	180 VAC	528 VAC	Analog PWM	3750 V	Wire Leads	90 °C	-40 °C	1	92.5 %	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm		Chassis Mount	IP67	OCP OTP OVP SCP	10 A
MEAN WELL USA Inc. HVG-240-42AB			235 W	AC DC Converter	Constant Current Voltage	180 VAC	528 VAC	Analog PWM	3750 V	Wire Leads	90 °C	-40 °C	1	92.5 %	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm		Chassis Mount	IP65	OCP OTP OVP SCP	10 A	cURus EAC FCC	24 V	UL 8750
MEAN WELL USA Inc. HVG-240-36A	33.5 V	38.5 V	241 W	AC DC Converter	Constant Current Voltage	180 VAC	528 VAC		3750 V	Wire Leads	90 °C	-40 °C	1	93 %	1.53 in	9.06 in	2.68 "	68 mm	38.8 mm	230.2 mm		Chassis Mount	IP65	OCP OTP OVP SCP	6.7 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 108.64
		5	$ 99.33
		10	$ 95.56
		25	$ 90.80

Description

General part information

HVG-240 Series

10A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
