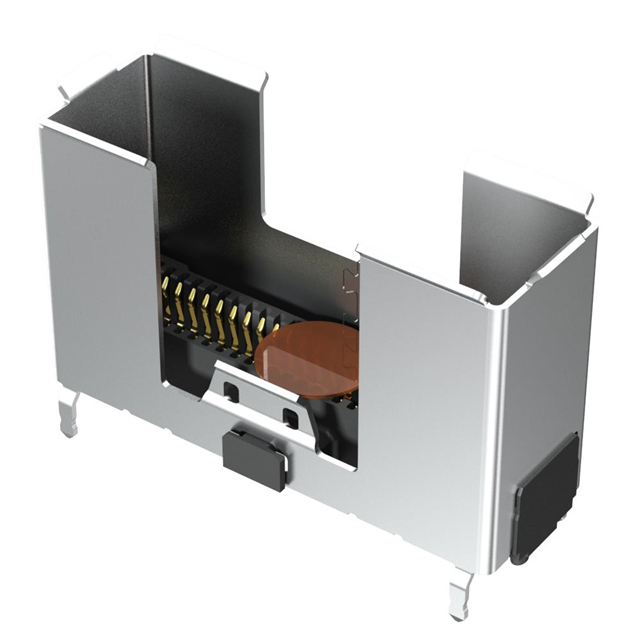

ARF6-16-S-D-A-K-TR

Active

Samtec Inc.

I/O CONNECTORS ACCELERATE SLIM SOCKET FOR ARC6 SERIES, 0.635 MM PITCH

Search across all available documentation for this part.

Active

Samtec Inc.

I/O CONNECTORS ACCELERATE SLIM SOCKET FOR ARC6 SERIES, 0.635 MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	ARF6-16-S-D-A-K-TR

Connector Style	Receptacle
Connector Type	High Density Array
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Board Guide, Pick and Place Cap
Mounting Type	Surface Mount
Number of Positions	16
Termination	Solder

High Speed / Modular Connectors AcceleRate Slim Socket for ARC6 Series, 0.635 mm Pitch

Part	Contact Finish	Mounting Type	Connector Style	Connector Type	Termination	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Samtec Inc. ARF6-16-S-D-A-K-TR	Gold	Surface Mount	Receptacle	High Density Array	Solder	16	Board Guide Pick and Place Cap Shielded	0.76 Ám	30 Áin
Samtec Inc. ARF6-08-S-RA-TR	Gold	Surface Mount Right Angle	Receptacle	High Density Array	Solder		Shielded	0.76 Ám	30 Áin	8
Samtec Inc. ARF6-16-L-RA-TR		Surface Mount Right Angle	Receptacle	High Density Array	Solder		Shielded
Samtec Inc. ARF6-16-S-RA-TR	Gold	Surface Mount Right Angle	Receptacle	High Density Array	Solder		Shielded	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Speed / Modular Connectors AcceleRate Slim Socket for ARC6 Series, 0.635 mm Pitch
