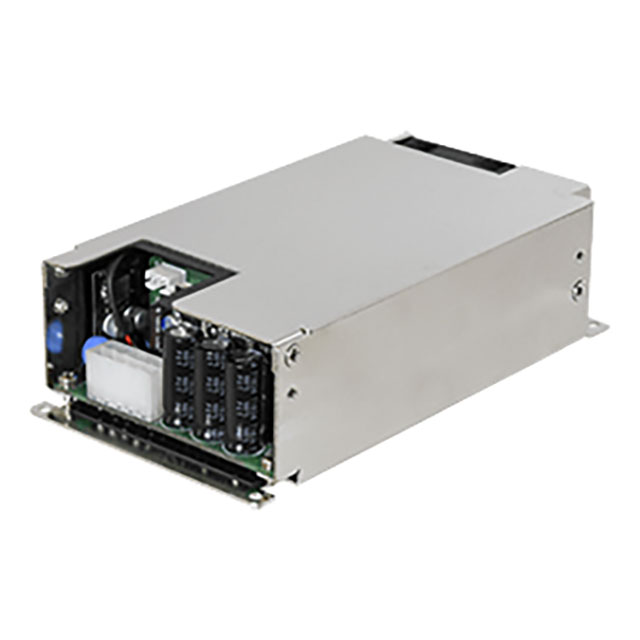

VMS-450B-54-CFS

Active

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 54V 8.3A 450W 17-PIN BOX

Deep-Dive with AI

Search across all available documentation for this part.

VMS-450B-54-CFS

Active

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 54V 8.3A 450W 17-PIN BOX

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VMS-450B-54-CFS

Applications	Medical
Approval Agency	TUV, CB Scheme, EN, IEC, UL
Current - Output 1	8.3 A
Efficiency	92 %
Features	PFC, Universal Input, Standby Output, Remote On/Off
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	448 W
Size / Dimension [x]	5.83 in
Size / Dimension [x]	148.1 mm
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Size / Dimension [z]	1.6 in
Size / Dimension [z]	40.6 mm
Standard Number	61000-3-2, 61000-3-3, 55011 Class B, 60601-1
Type	Enclosed
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	54 V

VMS-450 Series

Part	Approval Agency	Current - Output 1	Power (Watts)	Voltage - Isolation	Voltage - Output 1	Features	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Type	Number of Outputs	Mounting Type	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
CUI Inc. VMS-450B-54-CFS	CB Scheme EN IEC TUV UL	8.3 A	448 W	4000 V	54 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	92 %
CUI Inc. VMS-450B-19	CB Scheme EN IEC TUV UL	23.7 A	450 W	4000 V	19 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	127 mm			76.2 mm			Open Frame	1	Chassis Mount	92 %	5 in	3 "	32 mm	1.26 in
CUI Inc. VMS-450B-48-CNF	CB Scheme EN IEC TUV UL	9.4 A	451 W	4000 V	48 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	127 mm		50 mm		86.6 mm		Enclosed	1	Chassis Mount	91 %	5 in	3.41 "		1.97 "
CUI Inc. VMS-450B-12-CNF	CB Scheme EN IEC TUV UL	37.5 A	450 W	4000 V	12 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	127 mm		50 mm		86.6 mm		Enclosed	1	Chassis Mount	89 %	5 in	3.41 "		1.97 "
CUI Inc. VMS-450B-48-CF	CB Scheme EN IEC TUV UL	9.4 A	451 W	4000 V	48 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	127 mm		50 mm		86.6 mm		Enclosed	1	Chassis Mount	91 %	5 in	3.41 "		1.97 "
CUI Inc. VMS-450B-12-CF	CB Scheme EN IEC TUV UL	37.5 A	450 W	4000 V	12 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	127 mm		50 mm		86.6 mm		Enclosed	1	Chassis Mount	89 %	5 in	3.41 "		1.97 "
CUI Inc. VMS-450B-24-CF	CB Scheme EN IEC TUV UL	18.8 A	451 W	4000 V	24 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	127 mm		50 mm		86.6 mm		Enclosed	1	Chassis Mount	91 %	5 in	3.41 "		1.97 "
CUI Inc. VMS-450B-12-CFS	CB Scheme EN IEC TUV UL	37.5 A	450 W	4000 V	12 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	89 %
CUI Inc. VMS-450B-15-CFS	CB Scheme EN IEC TUV UL	30 A	450 W	4000 V	15 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	89 %
CUI Inc. VMS-450B-36-CNF	CB Scheme EN IEC TUV UL	12.5 A	450 W	4000 V	36 V	PFC Remote On/Off Standby Output Universal Input	Medical	240 VAC	100 VAC	-20 °C	70 °C	55011 Class B 60601-1 61000-3-2 61000-3-3	127 mm		50 mm		86.6 mm		Enclosed	1	Chassis Mount	90 %	5 in	3.41 "		1.97 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	24	$ 182.71
		48	$ 170.53

Description

General part information

VMS-450 Series

Enclosed AC DC Converters 1 Output 54V 100 ~ 240 VAC Input
