YW04020005LL-N-12

Active

YS TECH USA

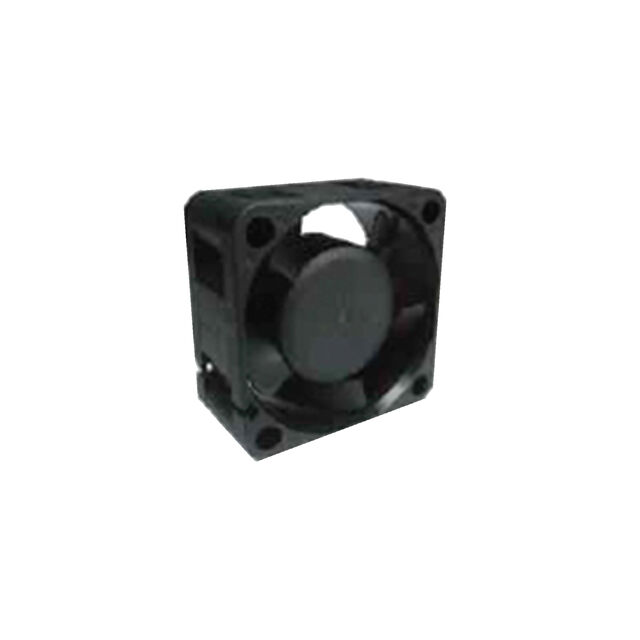

FAN AXIAL 40X20MM 5VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 40X20MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	YW04020005LL-N-12

Air Flow	6.1 CFM
Air Flow	0.171 m³/min
Bearing Type	Sintec
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	17 dB
Power (Watts)	300 mW
RPM	4500 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.111 in H2O
Static Pressure	27.6 Pa
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4 VDC
Width [y]	20 mm

Part	Power (Watts)	Bearing Type	Lifetime @ Temp.	Noise	Static Pressure	Static Pressure	Current Rating (Amps)	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Width [y]	RPM	Material - Blade	Termination	Fan Type	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow
YS TECH USA YW04020005LL-N-12	300 mW	Sintec	50000 Hrs	17 dB	0.111 in H2O	27.6 Pa	60 mA	5 V	4 VDC	5.5 V	20 mm	4500 RPM	Polybutylene Terephthalate (PBT)	2 Wire Leads	Tubeaxial	40 mm	Square	40 mm	6.1 CFM	0.171 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Sintec 6.1 CFM (0.171m³/min) 2 Wire Leads
