180-001-170L001

Active

MH Connectors

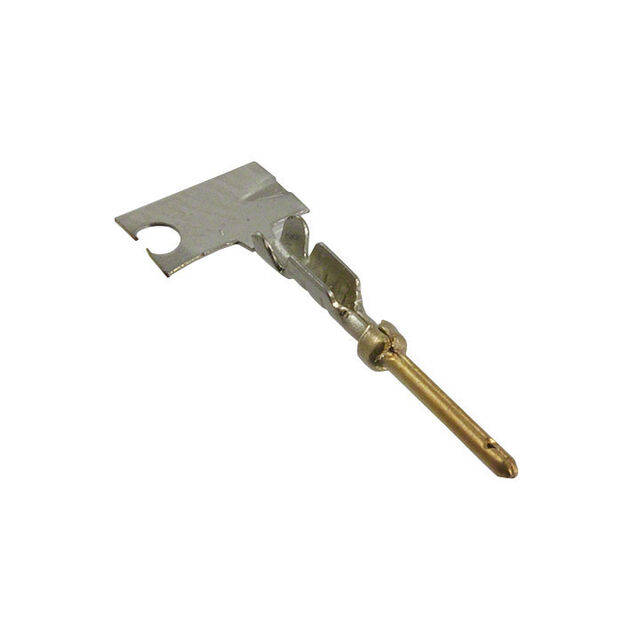

D SUB CONTACT, NORCOMP 180 SERIES HIGH DENSITY D SUB CONNECTORS, PIN, BRASS, GOLD PLATED CONTACTS

Search across all available documentation for this part.

Active

MH Connectors

D SUB CONTACT, NORCOMP 180 SERIES HIGH DENSITY D SUB CONNECTORS, PIN, BRASS, GOLD PLATED CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	180-001-170L001

Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Form	Stamped
Contact Material	Brass
Contact Termination	Crimp
Contact Type	Male Pin
Features	Insulation Support, High Density (HD)
Termination Finish	Nickel
Type	Signal
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	24 AWG

Part	Termination Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Features	Wire Gauge [Min]	Wire Gauge [Max]	Type	Contact Form	Contact Termination	Contact Material
MH Connectors 180-001-170L001	Nickel	10 Áin	0.25 Ám	Gold	Male Pin	High Density (HD) Insulation Support	24 AWG	26 AWG	Signal	Stamped	Crimp	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Male Pin Gold 24-26 AWG Crimp Stamped
