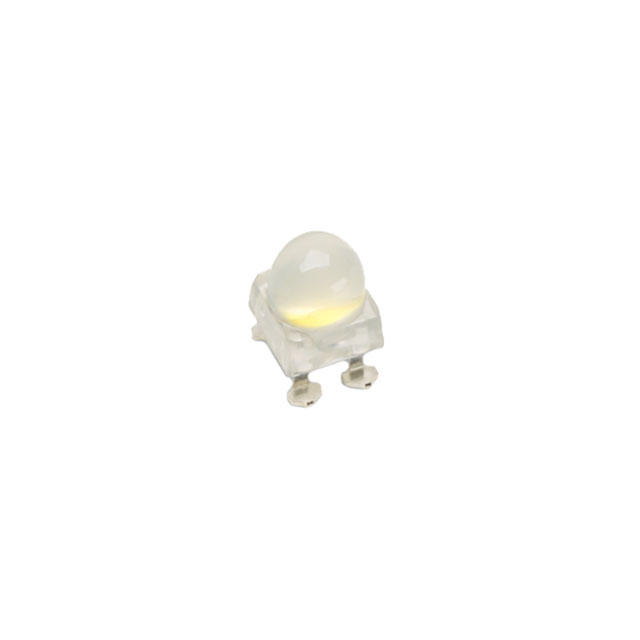

ALMD-CZ4G-VW002
ActiveBroadcom Limited
LED WHITE DIFFUSED SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ALMD-CZ4G-VW002
ActiveBroadcom Limited
LED WHITE DIFFUSED SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ALMD-CZ4G-VW002 |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 6.7 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 5700 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD Gull Wing |
| Size / Dimension [x] | 4.2 mm |
| Size / Dimension [y] | 4.2 mm |
| Supplier Device Package | SMD |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.67 | |
| 10 | $ 1.06 | |||
| 100 | $ 0.75 | |||
| 500 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.67 | ||
| 10 | $ 1.06 | |||
| 100 | $ 0.75 | |||
| 500 | $ 0.62 | |||
| Tape & Reel (TR) | 1000 | $ 0.48 | ||
Description
General part information
ALMD Series
White LED Indication - Discrete 2.9V 2-SMD Gull Wing
Documents
Technical documentation and resources
