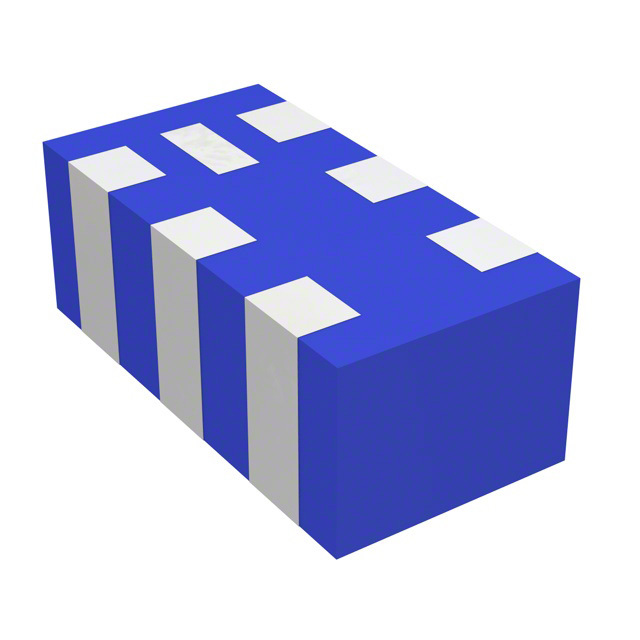

RGBLN1608070A5T

Active

Walsin Technology Corporation

BALUN 2.4GHZ-2.5GHZ 50/100 0603

Search across all available documentation for this part.

Active

Walsin Technology Corporation

BALUN 2.4GHZ-2.5GHZ 50/100 0603

Technical Specifications

Parameters and characteristics for this part

Specification	RGBLN1608070A5T

Frequency Range [Max]	2.5 GHz
Frequency Range [Min]	2.4 GHz
Impedance - Unbalanced/Balanced	100 Ohm, 50 Ohm
Insertion Loss (Max) [Max]	1.2 dB
Mounting Type	Surface Mount
Package / Case	0603
Package / Case	1608
Package / Case	6 Leads
Phase Difference	180 °
Return Loss (Min) [Min]	10 dB

Part	Return Loss (Min) [Min]	Mounting Type	Impedance - Unbalanced/Balanced	Phase Difference	Frequency Range [Max]	Frequency Range [Min]	Package / Case	Package / Case	Package / Case	Insertion Loss (Max) [Max]
Walsin Technology Corporation RGBLN1608070A5T	10 dB	Surface Mount	50 Ohm 100 Ohm	180 °	2.5 GHz	2.4 GHz	0603	1608	6 Leads	1.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Balun 2.4GHz ~ 2.5GHz 50 / 100Ohm 0603 (1608 Metric), 6 PC Pad
