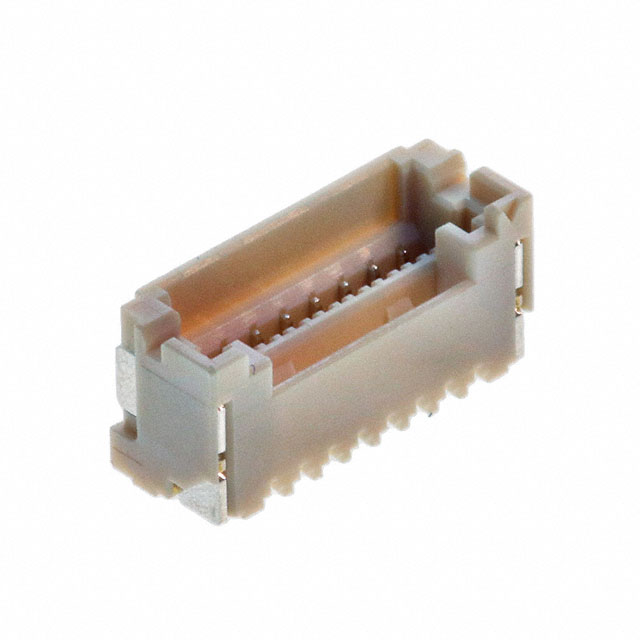

BM08B-ZESS-TBT

Active

JST Sales America Inc.

CONN HEADER SMD 8POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 8POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM08B-ZESS-TBT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	9.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Contact Finish - Post	Shrouding	Number of Rows	Contact Shape	Insulation Height	Insulation Height	Fastening Type	Number of Positions Loaded	Termination	Features	Insulation Material	Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Material Flammability Rating	Contact Type	Number of Positions	Contact Material	Insulation Color	Connector Type	Current Rating (Amps)	Mated Stacking Heights
JST Sales America Inc. BM08B-ZESS-TBT	Tin	Shrouded - 4 Wall	1	Rectangular	0.295 in	7.5 mm	Locking Ramp	All	Solder	Pick and Place Solder Retention	Nylon Polyamide (PA)	Board to Cable/Wire	Surface Mount	-25 °C	85 °C	100 V	UL94 V-0	Outer Shroud Contact	8	Copper Alloy	Natural	Header	2 A	9.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 8 position 0.059" (1.50mm)
