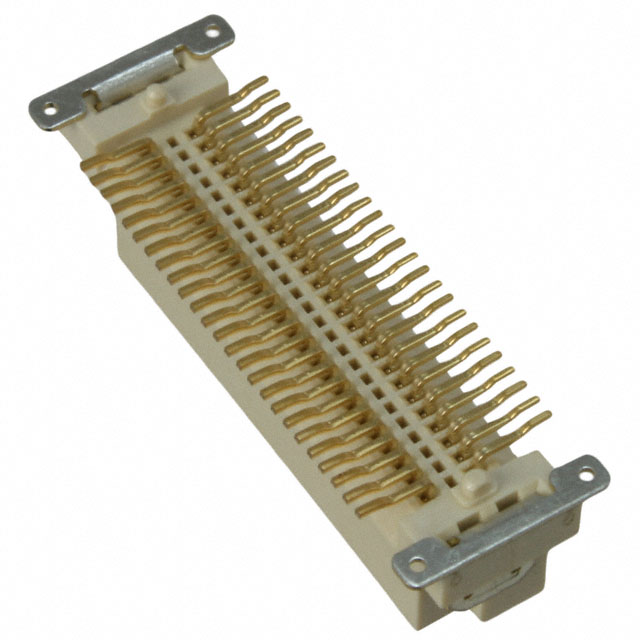

AXN1500115P

Obsolete

Panasonic Electric Works

CONN HDR/SCKT 50POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR/SCKT 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXN1500115P

Connector Type	Header, Socket
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.329 in
Height Above Board	8.35 mm
Mated Stacking Heights	11.5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Height Above Board	Height Above Board	Connector Type	Mated Stacking Heights	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Features	Mounting Type
Panasonic Electric Works AXN1500115P	Gold	0.329 in	8.35 mm	Header Socket	11.5 mm	2	0.8 mm	0.031 in	50	Board Guide Solder Retention	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Connector Header and Socket Surface Mount Gold
