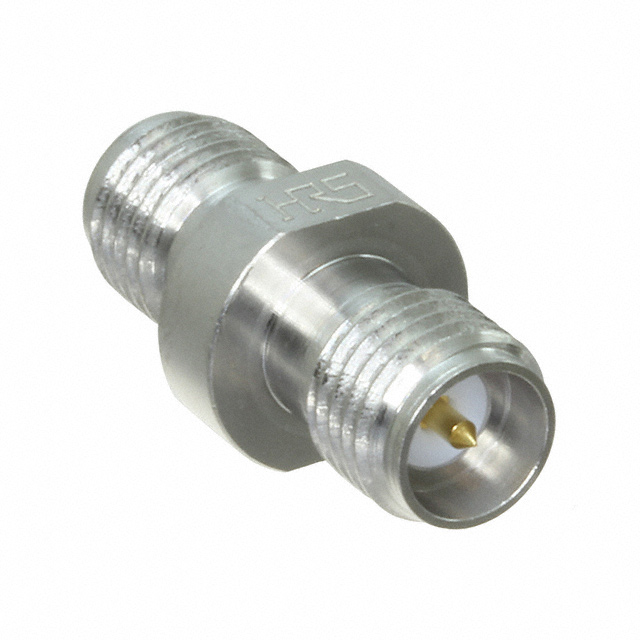

HRMJ-SMA(R)J

Active

Hirose Electric USA, Inc.

COAX ADAPT SMA TO RP-SMA

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

COAX ADAPT SMA TO RP-SMA

Technical Specifications

Parameters and characteristics for this part

Specification	HRMJ-SMA(R)J

Adapter Series	SMA to RP-SMA
Adapter Type	Jack to Jack
Body Finish	Gold; Passivated
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	RP-SMA Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Center Contact Material	Mounting Type	Center Contact Plating	Adapter Series	Frequency - Max [Max]	Body Material	Mating Cycles	Impedance	Body Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Convert From (Adapter End)	Style	Conversion Type	Adapter Type
Hirose Electric USA, Inc. HRMJ-SMA(R)J	Beryllium Copper	Free Hanging (In-Line)	Gold	SMA to RP-SMA	26.5 GHz	Stainless Steel	1000	50 Ohms	Gold; Passivated	Polytetrafluoroethylene (PTFE)	85 °C	-40 °C	Male Pin RP-SMA Jack	Female Socket SMA Jack	Straight	Between Series	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To RP-SMA Jack, Male Pin 50 Ohms
