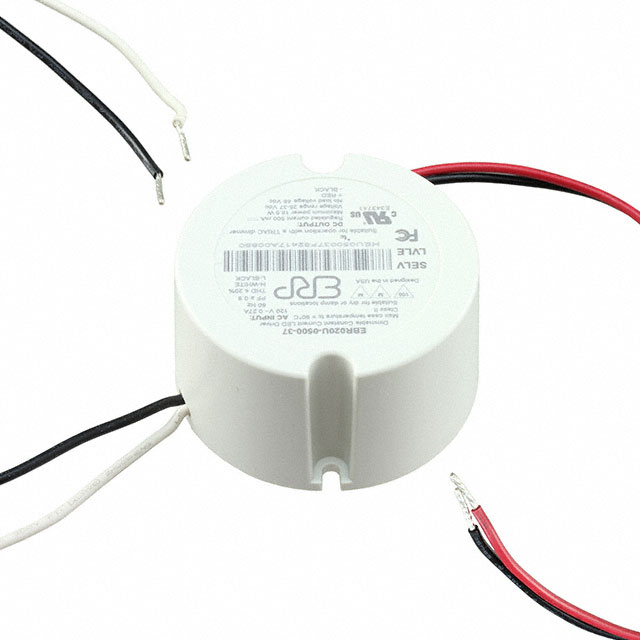

EBR020U-0500-37

Active

ERP Power, LLC

LED DRIVER CC AC/DC 25-37V 500MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EBR020U-0500-37

Active

ERP Power, LLC

LED DRIVER CC AC/DC 25-37V 500MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBR020U-0500-37

Approval Agency	CE, cURus
Current - Output (Max) [Max]	500 mA
Dimming	ELV, TRIAC
Efficiency	87 %
Features	OTP, SCP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Power (Watts)	19 W
Ratings	IP20
Size / Dimension	57.9 mm, 31.8 mm
Size / Dimension [diameter]	2.28 in
Size / Dimension [z]	1.25 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max] [custom]	132 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Output [Max]	37 V
Voltage - Output [Min]	25 V
Weight	170.5 g
Weight	0.376 lb

EBR020 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max] [custom]	Approval Agency	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [z]	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Weight	Weight	Dimming	Topology	Termination Style	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Type	Ratings	Mounting Type	Features	Voltage - Input (Max) [Max]
ERP Power, LLC EBR020U-0400-42	-30 ░C	90 °C	132 VAC	CE cURus	2.28 in	31.8 mm 57.9 mm	1.25 "	1	42 V	30 V	170.5 g	0.376 lb	ELV TRIAC	AC DC Converter	Wire Leads	400 mA	87 %	17 W	90 VAC	Constant Current	IP20	Chassis Mount	OCP OTP SCP
ERP Power, LLC EBR020U-0720-21	-30 ░C	90 °C	132 VAC	CE cURus	2.28 in	31.8 mm 57.9 mm	1.25 "	1	21 V	14 V			ELV TRIAC	AC DC Converter	Wire Leads	720 mA	85 %	15 W	90 VAC	Constant Current	IP20	Chassis Mount	OCP OTP SCP
ERP Power, LLC EBR020U-0500-42	-30 ░C	90 °C	132 VAC	CE cURus	2.28 in	31.8 mm 57.9 mm	1.25 "	1	42 V	30 V	170.5 g	0.376 lb	ELV TRIAC	AC DC Converter	Wire Leads	500 mA	87 %	21 W	90 VAC	Constant Current	IP20	Chassis Mount	OCP OTP SCP
ERP Power, LLC EBR020U-0500-32	-30 ░C	90 °C	132 VAC	CE cURus	2.28 in	31.8 mm 57.9 mm	1.25 "	1	32 VDC	21 V	170.5 g	0.376 lb	ELV TRIAC	AC DC Converter	Wire Leads	500 mA	87 %	16 W	90 VAC	Constant Current	IP20	Chassis Mount	OCP OTP SCP
ERP Power, LLC EBR020E-0500-42-CE	-30 ░C	90 °C		CE cURus	2.28 in	31.8 mm 57.9 mm	1.25 "	1	42 V	30 V	170.5 g	0.376 lb	ELV TRIAC	AC DC Converter	Wire Leads	500 mA	87 %	21 W	220 VAC	Constant Current	IP20	Chassis Mount	OCP OTP SCP	240 VAC
ERP Power, LLC EBR020U-0500-37	-30 ░C	90 °C	132 VAC	CE cURus	2.28 in	31.8 mm 57.9 mm	1.25 "	1	37 V	25 V	170.5 g	0.376 lb	ELV TRIAC	AC DC Converter	Wire Leads	500 mA	87 %	19 W	90 VAC	Constant Current	IP20	Chassis Mount	OCP OTP SCP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.88
		5	$ 15.08
		10	$ 14.29
		25	$ 13.89
		50	$ 12.90
		100	$ 12.30
		250	$ 11.91
		500	$ 10.92

Description

General part information

EBR020 Series

500mA 25 ~ 37V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources
